Shop HAMILTON

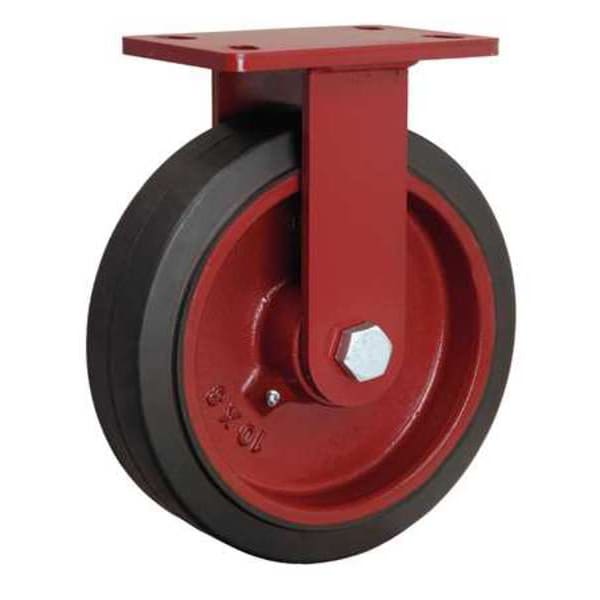

Plte Caster, Rgd, Rubber, 10 in., 790 lb.

  • Mfr # R-FM-10RB
  • Zoro # G3420767
product price:
$
181.99
/ea
Free Shipping & Returns

Key Features

Includes
Spanner Bushing
Core Color
Red
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Dia.
10 in
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R-FM-10RB
Zoro #
G3420767
UPC #
-
Country of Origin
United States
Includes
Spanner Bushing
Core Color
Red
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Wheel Color
Black
Frame Finish
Enamel
Caster Frame Material
Steel
Item
Plate Caster
Caster Brake Included
No
Replacement Wheel
Mfr. No. W-1025-RB-3/4
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
No
Thread Guards
No
Features
Floor Protective
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Sub-Type
Rigid
Number of Wheels
1
Extended Lead
No
Caster Plate Hole Pattern
A
Load Rating
790 lb
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Tread Shape
Standard
Wheel Core Material
Iron
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Caster Brake Type
No Brake
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
790 lb
Compatible With
W-1025-RB-3/4
Wheel Hardness Rating
70 Shore A
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-70 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-70 Degrees to 160 Degrees F

Dimensions

Wheel Dia.
10 in
Wheel Width
2 1/2 in
Overall Height
11-1/2"
Mounting Bolt Dia.
1/2 in
Mounting Height
11 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Fits Chest Size
Floor Protective

Description

Rigid, Plate Caster, Load Rating 790 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
