  11. Rigid Caster, Hs 6X2 Mort

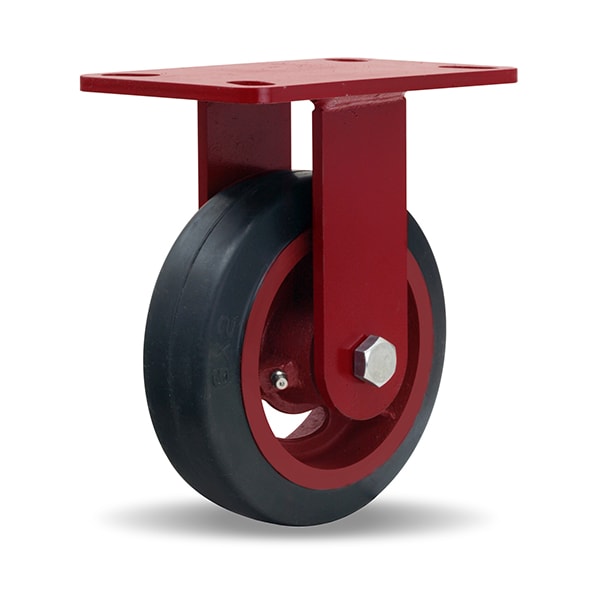

Hamilton Rigid Caster, Hs 6X2 Mort R-HS-6R - main

Rigid Caster, Hs 6X2 Mort

  • Mfr # R-HS-6R

  • Zoro # G9080677

product price: $84.29
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-HS-6R
Zoro #
G9080677
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
410 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Red
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
Frame Finish
Powder Coated
Series
Heavy Service
Includes Mounting Fasteners
No
NSF Listed
No
Wheel Core Material
Iron
Wheel Core Type
Spoke
Tire Style
Tubeless
Frame Construction
Forged
Swivel Lock Type
No Lock Included
Wheel Bearing Material
Steel
With Toe Plate
No
Leveling Caster
No
Load Rating Range
300 to 999 lb
Operating Temperature Range
-30 Degrees to 250 Degrees F
Wheel/Tread Hardness Rating
Soft
ESD Conductive
Yes
Frame Color
Red
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Wheel Type
Flat-Free
Tread
Flat
For Surface Type
Concrete
Load Capacity - Maximum
410 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Rigid, Plate Caster, Load Rating 410 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
