  6. Rigid Caster, SS, 6 in., 800 lb.

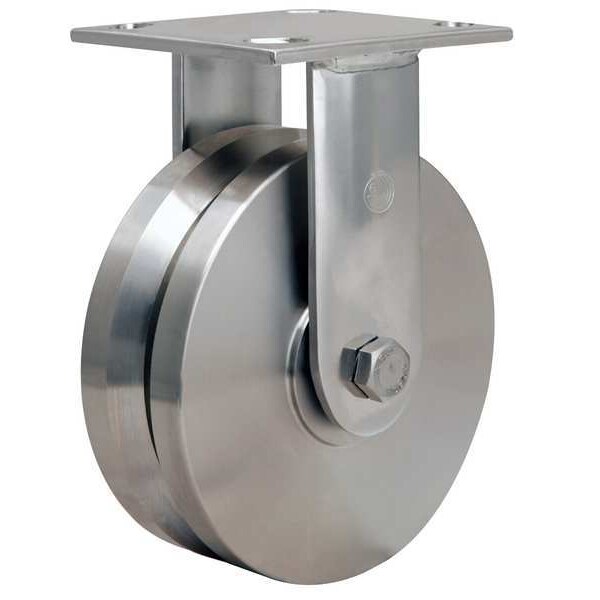

Hamilton Rigid Caster, SS, 6 in., 800 lb. R-STA-6SVB - main

Rigid Caster, SS, 6 in., 800 lb.

  • Mfr # R-STA-6SVB

  • Zoro # G1894812

product price:  $314.99
/ea
Free Shipping & Returns

Key Features

Core Color
Silver
Load Rating
800 lb
Overall Height
7-1/2in
Caster Sub-Type
Rigid
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-STA-6SVB
Zoro #
G1894812
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2in
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Recommended Track Size
1-1/2 in x 1-1/2 in
Mounting Plate Size
3-3/4 in x 4-1/2 in
Mounting Height
7 1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4 in

Details

Core Color
Silver
Load Rating
800 lb
Caster Sub-Type
Rigid
Non-Marking
Yes
Caster Brake Included
No
Caster Temp. Range Available
Yes
Item
Plate Caster
Caster Frame Material
Stainless Steel
Replacement Wheel
Mfr. No. W-620-SVB-1/2
Frame Finish
Stainless Steel
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Number of Wheels
1
Wheel Color
Silver
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Material
Stainless Steel
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Extra Hard
Number of Mounting Holes
4
Wheel Core Material
Stainless Steel
Clearance on 1-1/2" Track
5/8 in
Swivel Lock Type
No Lock Included
Tread Shape
V-Groove
Wheel Type
Flat-Free
Load Capacity - Maximum
800 lb
Compatible With
W-620-SVB-1/2
Wheel Bearing Material
Stainless Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Hardness Rating
160 BHN
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Stainless Steel, Wheel Core Material Stainless Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
