  11. Rigid Pneumatic Caster, 10 in., 480 lb.
Shop All Plate Casters
Hamilton

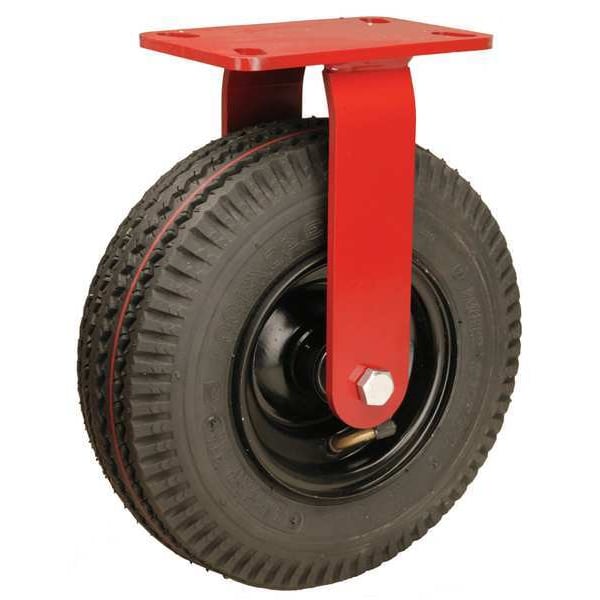

Rigid Pneumatic Caster, 10 in., 480 lb.

original price: $157.99
5% off
new price: $149.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Sub-Type Rigid
  • Caster Load Rating Range Light-Medium Duty
  • Caster Product Group Rigid Caster
  • Load Rating 480 lb
  • Wheel Dia. 10 in
See all product information

Product Information

Dimensions

Wheel Dia. 10 in
Wheel Width 3 1/2 in
Overall Height 12-1/2"
Mounting Height 12 1/2 in
Mounting Plate Size 4-1/2 in x 6-1/2 in
Mounting Bolt Dia. 1/2 in
Tire Rim Dia. 5 in
Hub Width 3"
Plate Size 4-1/2" x 6-1/2"

Details

Item Plate Caster with Pneumatic Wheels
Caster Sub-Type Rigid
Caster Load Rating Range Light-Medium Duty
Caster Product Group Rigid Caster
Load Rating 480 lb
Wheel/Tread Material Rubber
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Non-Marking No
Number of Wheels 1
Frame Finish Enamel
Caster Frame Material Steel
Hub Color Black
Plate Caster Bolt Hole Pattern A
Caster Mounting Type Plate
Tread Color Black
Plate Thickness 1/4"
Hub Type Symmetrical
Caster Temp. Range -30 Degrees to 120 Degrees F
Tread Sawtooth
Frame Material Steel
Caster Temp. Range Available Yes
Caster Wheel Bearings Ball
Hub Material Steel
Caster Plate Hole Pattern A
Ply 4
Includes Thread Guards No
Wheel/Tread Hardness 60 Shore A
Operating Temperature Range -30 Degrees to 120 Degrees F
Load Rating Range 300 to 999 lb

Description

Plate Caster with Pneumatic Wheels, Load Rating Range 300 to 999 lb, Load Rating 480 lb, Tread Sawtooth, Wheel Dia. 10 in, Wheel Width 3 1/2 in, Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in, Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in, Caster Brake Type No Brake Included, Caster Product Group Rigid Caster, Caster Sub-Type Rigid, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 5 in, Frame Finish Enamel, Tread Color Black
