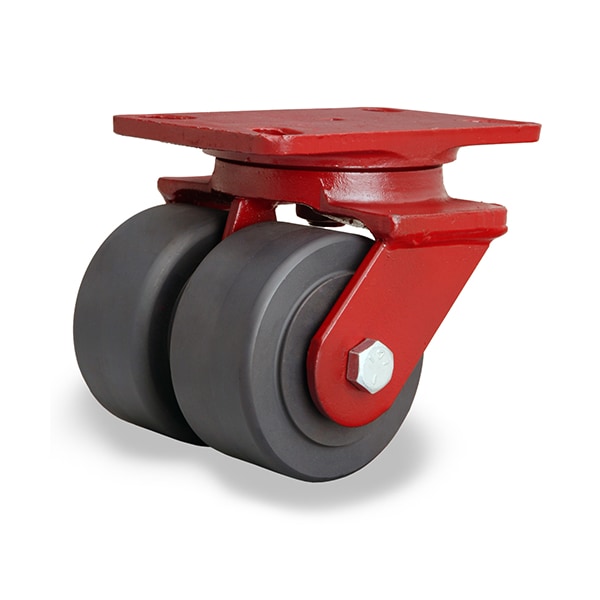

Hamilton Swivel Caster, Hs2 4X2 Nylast S-HS2-4NYB - main

Swivel Caster, Hs2 4X2 Nylast

  • Mfr # S-HS2-4NYB

  • Zoro # G3697800

product price:  $413.99
/ea
Free Shipping & Returns

Key Features

Core Color
Black
Wheel Dia.
4 in
Thread Guards
No
Caster Brake Type
No Brake
Mounting Bolt Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS2-4NYB
Zoro #
G3697800
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
3 3/8 in
Wheel Width
2 in
Overall Wheel Width
4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
For Axle Dia.
1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
5/16 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in

Details

Core Color
Black
Thread Guards
No
Caster Brake Type
No Brake
Load Rating
3000 lb
Standards
ANSI ICWM
Non-Marking
No
Tread
Flat
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Mounting Type
Plate
Caster Plate Hole Pattern
A
Frame Finish
Powder Coated
Number of Wheels
2
Item
Plate Caster
System of Measurement
Inch
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Frame Material
Steel
Wheel Type
Flat-Free
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Leveling Caster
No
Tire Style
Tubeless
Wheel Core Type
Solid
Includes Spanner Bushing
Yes
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Includes Mounting Fasteners
No
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Color
Black
Frame Color
Red
For Surface Type
Concrete
Swivel Bearing Seal Type
Open
Wheel Bearing Material
Steel
Series
Heavy Service
Swivel Lead
1 3/4 in
Wheel Core Material
Nylon
Tread Shape
Standard
ESD Conductive
Yes
Load Rating Range
3000 to 5999 lb
NSF Listed
No
Operating Temperature Range
-30 Degrees to 220 Degrees F
Swivel Raceway Type
Single Ball
With Toe Plate
No
Number of Mounting Holes
4
Frame Construction
Forged
Wheel/Tread Material
Nylon
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
3,000 lb
Wheel Hardness Rating
85 Shore D
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
