  11. Swivel Plt Cstr, Polyurethane, 3 in, 450 lb
Shop All Plate Casters
Zoro Select

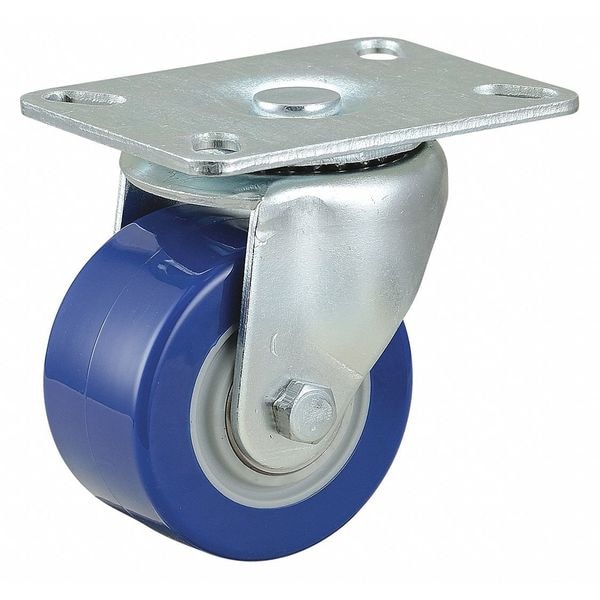

Swivel Plt Cstr, Polyurethane, 3 in, 450 lb

original price: $20.12
9% off
new price: $18.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 3-7/8"
Wheel Dia. 3 in
Wheel Width 1 3/4 in
Stem Dia. No Stem
Caster Plate Size 3-1/8" x 4-1/8"
Swivel Radius 2 1/4 in
Mounting Bolt Dia. 5/16 in
Plate Size 3-1/8" x 4-1/8"
Mounting Height 3 15/16 in
Mounting Plate Size 3 1/8 in x 4 1/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 450 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Hole Pattern A
Core Color Gray
Durometer 55 Shore D
Item Low-Profile Standard Plate Caster
Caster Swivel Lock Type No Lock Included
Caster Product Group Swivel Caster
Caster Core Material Polyolefin
Thread Guards No
Caster Frame Material Steel
Caster Min. Temp. -40 Degrees F
Caster Temp. Range Available Yes
Extended Lead No
Non-Marking Yes
Outside Bolt Hole Spacing 2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Plate Caster Bolt Hole Pattern A
Caster Raceway Double Ball
Caster Wheel Bearings Ball
Caster Temp. Range -40 Degrees to 180 Degrees F
Caster Max. Temp. 180 Degrees F
Plate Thickness 0.149"
Frame Finish Zinc Plated
Wheel Color Blue
Frame Material Steel
Application Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Caster Plate Thickness 9/64"
Standards ICWM
Caster Brake Type No Brake Included
Includes Thread Guards No
Swivel Construction Kingpin
Tread Shape Standard
Swivel Raceway Type Double Ball
Wheel Core Material Plastic
Mounting Plate Bolt Hole Pattern A
Wheel/Tread Hardness 95 Shore A
Wheel/Tread Hardness Rating Firm
Swivel Lock Type No Lock Included
Load Rating Range 300 to 999 lb
Wheel Bearing Type Precision Ball
Number of Mounting Holes 4
Wheel/Tread Material Polyurethane
Wheel/Tread Color Blue

Description

Swivel, Low-Profile Standard Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
