Shop HAMILTON

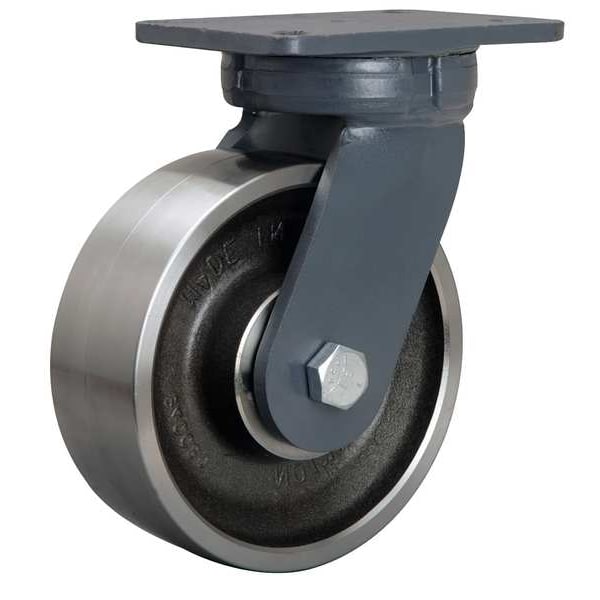

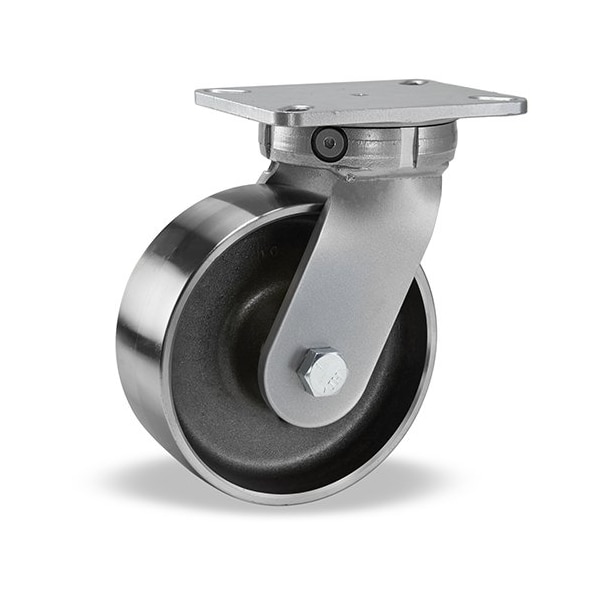

Swivel Kingpinless Plate Caster, Steel, 8 in, 6000 lb

  • Mfr # S-SEC-83FSB

  • Zoro # G1944801

product price:  $441.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Extended Lead
No
Caster Brake Included
No
Standards
ANSI ICWM
Includes
Spanner Bushing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-SEC-83FSB
Zoro #
G1944801
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
10-1/2"
Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Length
6.125 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Length
5.25 in

Details

Caster Temp. Range Available
Yes
Extended Lead
No
Caster Brake Included
No
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Includes
Spanner Bushing
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Wheel Color
Gray
Item
Plate Caster
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Replacement Wheel
4DU75
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Enamel
Load Rating
6000 lb
Core Color
Silver
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Steel
Includes Thread Guards
No
Load Rating Range
6000 lb and Greater
Wheel/Tread Material
Steel
Wheel/Tread Color
Gray
Wheel Type
Flat-Free
Load Capacity - Maximum
6,000 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Concrete
Wheel Hardness Rating
170 BHN
Mounting Hole Type
Slot
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 6000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
