Shop HAMMOND

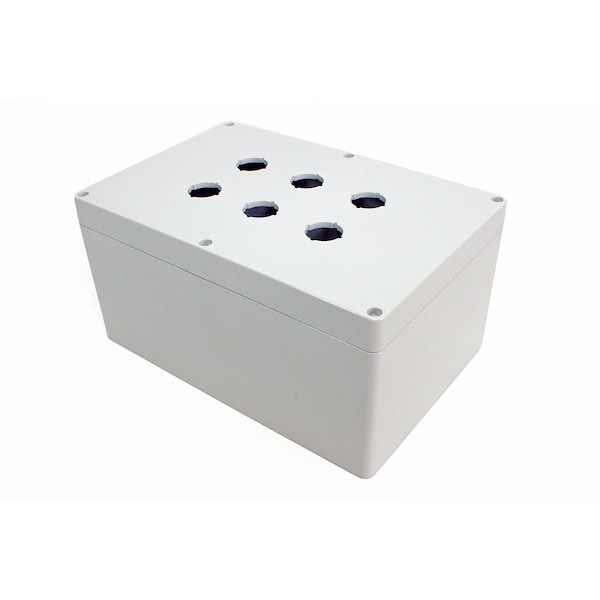

6 hole, 22.5mm, Pushbutton Enclosureosure, Polycarbonate 1554VB

  • Mfr # 1554MPB6B

  • Zoro # G810889960

product price:  $52.59
/ea

Key Features

Material
Polycarbonate
Height
9.5
Width
6.3
Depth
4.7
Color
Light Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1554MPB6B
Zoro #
G810889960
UPC #
62398040182
Country of Origin
Canada

Dimensions

Height
9.5
Width
6.3
Depth
4.7
Size
9.5 in x 6.3 in x 4.7 in (H x W x D)

Details

Item
Enclosure
Material
Polycarbonate
Color
Light Gray
Standards
IP66; NEMA 4, 4X, 6, 6P, 12 & 13 6 pushbutton enclosures do not meet Type 6/6P; 6 pushbutton enclosures do not meet Type 6/6P; UL94 5VA
Construction
Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components; The polycarbonate material carries a UL flammability rating of UL94 5VA and is suitable for outdoor use; Lid and mounting holes are located outside of the gasket seal; Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly); Heavy duty 16 gauge galvanized steel panels available (see chart); All stainless steel hardware to avoid corrosion caused by dissimilar metals; Gasket is a preformed, high temperature U.L. listed silicone rubber. Gasket is replaceable; Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water; Internal DIN rail mounting tabs; Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping screws for P.C. board or inner panel mounting in all but the smallest size; Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size
Additional Description
6 HOLE 22.5MM P-BUTTON 1554VB
Finish
Color is light gray (RAL 7035)
