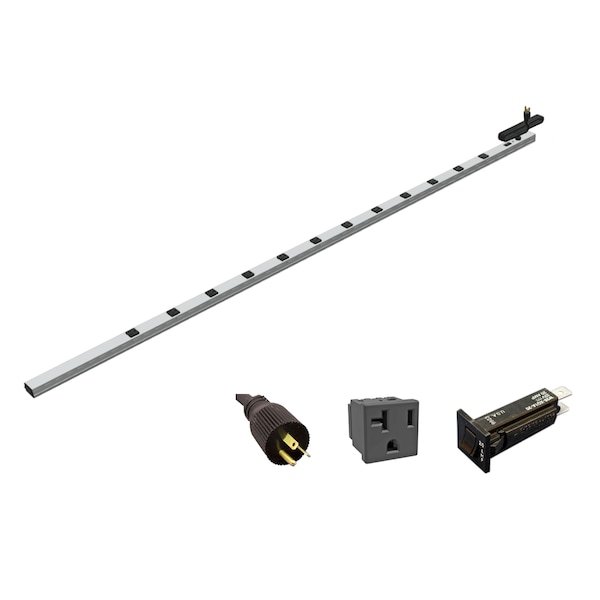

Power Strip, Vertical Basic, 5-20R, 5-20P, 15 ft., Natural

  • Mfr # 1589H77G1JV

  • Zoro # G110892127


product price: $148.99
/ea
Free Shipping & Returns

Key Features

Type
Vertical Basic
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Cord Length
15 ft.
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1589H77G1JV
Zoro #
G110892127
UPC #
62398051304
Country of Origin
Canada

Dimensions

Cord Length
15 ft.

Details

Item
Power Strip
Type
Vertical Basic
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
Natural
Gauge/Conductor
12/3
Standards
TAA-Compliant, RoHS/REACH Compliant
Voltage
120 VAC
Metered
No
Number of Outlets
7
Features
Low-profile slim design constructed of rugged light weight aluminum; Designed for a variety of applications, specifically where electromagnetic or radio frequency interference is a concern: Shielded cord reduces EMI/ RFI and "dirty" power from utilities. Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire; Shielded cord reduces EMI/ RFI and "dirty" power from utilities; Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire; Each outlet strip includes a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit; Includes toolless PDU button mounting provision; Receptacles are 1" square and are equally spaced over the length of the power strip; With on/off switch and 15 or 20 Amp circuit breaker.
Total Outlets
7
Outlet Type
5-20R
Shielded Cord
Yes
Outlets (Rear)
0
Outlet Strip Type
Vertical Basic PDU
Rotated Outlets
No
Cord Included
Yes
Switch Type
On/Off Rocker Switch
Hospital Grade
No
Specifications
Heavy duty cord, either 12 gauge (12/3 SJT) or 14 gauge (14/3 SJT) wire for extreme temperature ranges and integral molded plug; Plug types for 15 Amp models are NEMA 5-15P straight blade or NEMA L5-15P locking type; Plug types for 20 Amp models are NEMA 5-20P straight blade or NEMA L5-20P locking type; Rated 15 or 20 amps, 120 volts; UL/cUL Listed Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04; NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories; NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the cabinet; TAA compliant for GSA Schedule purchases; RoHS Compliant; Manufactured in North America.
Surge Protection
No
Additional Description
20A 12 Outlet Vertical Strip w/ switch, 15 ft. shielded cord - 77" long, Toolless Mount
