  9. Screws Electrical Enclosures, 7.87 in H, 4.72 in D, 12.99 in W

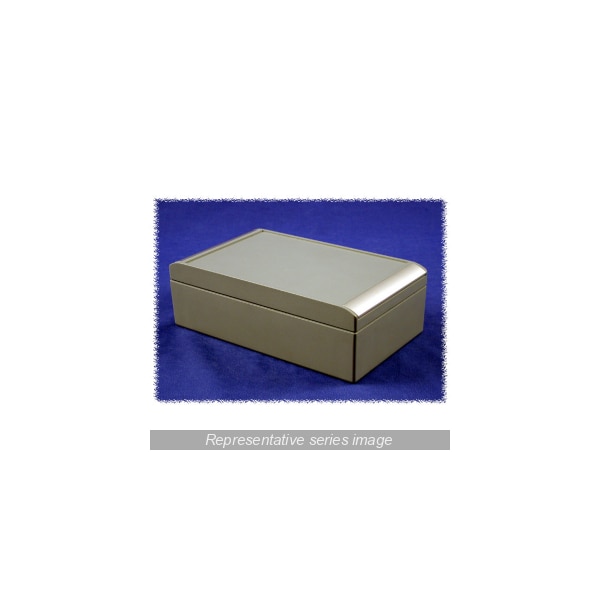

Hammond Screws Electrical Enclosures, 7.87 in H, 4.72 in D, 12.99 in W R191-202-100 - main

Screws Electrical Enclosures, 7.87 in H, 4.72 in D, 12.99 in W

  • Mfr # R191-202-100

  • Zoro # G710889848

product price: $411.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
12.99 in
Nominal Height
7.87 in
Nominal Depth
4.72 in
Closure Method
Screws
Metallic / Non-Metallic
Metallic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R191-202-100
Zoro #
G710889848
UPC #
62398062573
Country of Origin
Germany

Dimensions

Nominal Width
12.99 in
Nominal Height
7.87 in
Nominal Depth
4.72 in

Details

Item
Electrical Enclosures
Closure Method
Screws
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Textured Polyester Powder
Mounting
Wall
Enclosure Cover Type
Clip On
Solid / Clear Cover
Solid
Enclosure NEMA Rating
NEMA 1, 4, 4X, 12, 13
IP Rating
IP67
Material of Enclosure
Aluminum
Key Features
Modern, high quality instrument enclosure; Material - Aluminum die-cast: GD SI 12 / DIN 1725; Shallow lid, deep body; Captive stainless steel lid screws; Enclosure can be mounted after closing lid; Integrated 1.7 mm recess in lid for membrane keypads and front panels; Neoprene oil and petrol resistant - thermoplastic gasket standard. (-40ºC up to +120ºC); Clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - grey RAL 7040; Complete with lid captivation devices; Degree of protection: NEMA 4X, IP67; CSA and UL listed, Type 4; Textured polyester powder coat, grey RAL 7040. (can be supplied unpainted on special order)
Enclosure Material
Aluminum
NEMA Enclosure Rating
NEMA 1, 4, 4X, 12, 13
Cover Closure Type
Clip On
Cover Style
Solid

Description

enclosure - diecast aluminum
