  11. Dryer, 450 cfm Max. Flow, 75 HP Max. Air

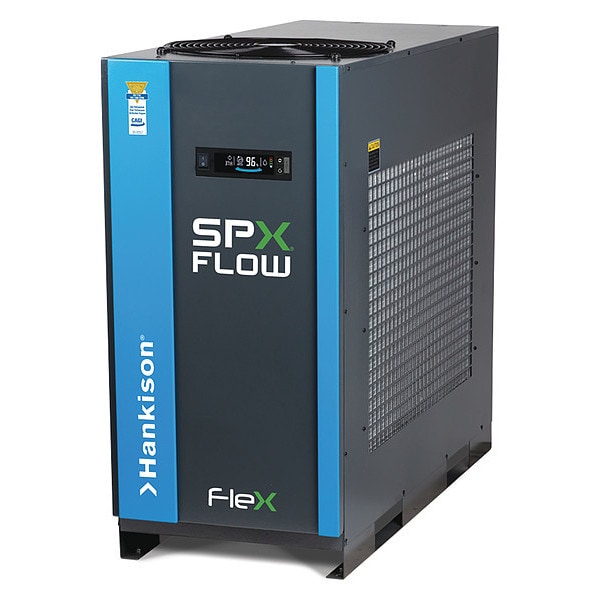

Hankison Dryer, 450 cfm Max. Flow, 75 HP Max. Air FLX4.5 - main

Dryer, 450 cfm Max. Flow, 75 HP Max. Air

  • Mfr # FLX4.5

  • Zoro # G8526292

product price: $13,618.98
/ea
Additional $230.00 delivery surcharge applies per item.
See details

Key Features

Includes
Air Saver Drain
Phase
Three
Voltage
460V AC
Overall Height
41 in
Overall Width
20 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLX4.5
Zoro #
G8526292
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height
41 in
Overall Width
20 in
Overall Depth
49 in
Connection Size - Air Treatment
2 in NPT
Air Outlet Size
2 in
Air Inlet Size
2 in

Details

Item
Refrigerated Air Dryer
Includes
Air Saver Drain
Phase
Three
Voltage
460V AC
Refrigeration Compressor (HP)
1
ISO Class
5
Refrigerant
R-407C
Max. Air Compressor HP
75 hp
Bracket Kit
No
Input Voltage - Air Treatment
460V AC
Power
3.23 kW
Max. Incoming Pressure - Air Treatment
232 psi
Phase - Air Treatment
Three
Max. Inlet Temp. - Air Treatment
122 Degrees F
Features
Compressor On Indicator, Dew Point Status Indicator, Dryer On Indicator, Energy Savings % Indicator, On/Off Switch
Item - Refrigerated Air Dryers
Refrigerated Compressed Air Dryer
Dew Point
42 Degrees F
Refrigeration Compressor HP
1 hp
ISO Class - Air Treatment
5
Max. Flow - Air Treatment
450 cfm
Full Load Amps
5.8 A
Max. Ambient Temp.
110 Degrees F
Heat Exchanger Material
Stainless Steel
Finish
Powder Coated
Maximum Ambient Temperature
100 Degrees F
Series
FLEX
Cycling Type
Cycling
For Maximum Compressor Output Power
75 hp
Drain Type
Air Saver
Maximum Flow Rate
450 cfm
Number of Air Outlets
1
Drain Included
Yes
Maximum Flow @ 100 psi
450 scfm
Number of Air Inlets
1
Bracket Kit Included
No
Air Inlet Gender
Female
Standards
ISO 7183
Pressure Drop
3 psi
Frequency
60 Hz
Air Outlet Type
NPT
Maximum Operating Pressure
232 psi
Maximum Operating Temperature
100 Degrees F
Refrigeration Compressor Horsepower
1 hp
Air Inlet Type
NPT
Full Load Current
5.8 A

Description

Refrigerated Air Dryer, ISO Class 5, Maximum Flow Rate 450 cfm, Voltage 460V AC, Phase Three, Air Inlet Size 2 in, Air Inlet Type NPT, Air Inlet Gender Female, Maximum Operating Temperature 100 Degrees F, Power 3.23 kW, Dew Point 42 Degrees F, Series FLEX, Air Outlet Size 2 in, Air Outlet Type NPT, Bracket Kit Included No, Cycling Type Cycling, Drain Included Yes, Drain Type Air Saver
