  6. Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 1/4"-18 Thread Size

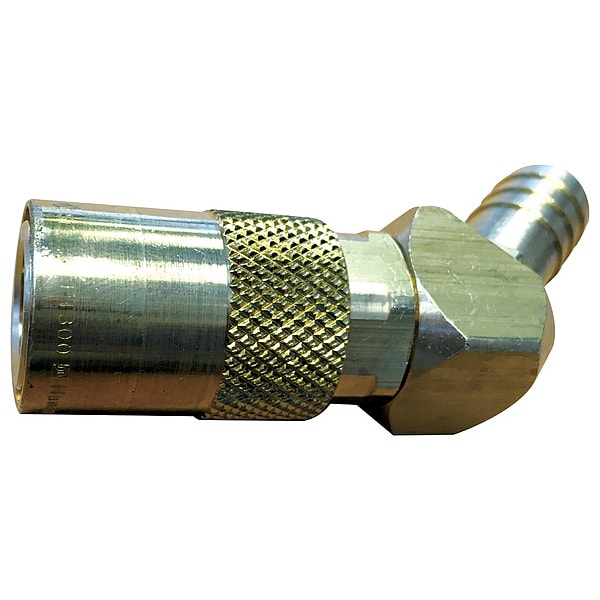

Hansen Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 1/4"-18 Thread Size FTS224 - main

Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 1/4"-18 Thread Size

  • Mfr # FTS224

  • Zoro # G0700796

product price:  $16.69
/ea

Key Features

Body Material
Brass
Seal Material
Silicone
Coupling Locking Type
Push-to-Connect
Max. Pressure
200 psi
Thread Size
1/4"-18
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FTS224
Zoro #
G0700796
UPC #
-
Country of Origin
Canada

Dimensions

Thread Size
1/4"-18
Length
2-13/32"
Overall Length
2 13/32 in
Coupler Body Size
1/4"
Coupler Thread Size
1/4"-18
Coupling Size
1/4 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Brass
Seal Material
Silicone
Coupling Locking Type
Push-to-Connect
Max. Pressure
200 psi
Connection Type
Hose Barb
Shut Off
No
For Use With
FLO-TEMP Series Plugs
Sleeve Material
Brass
Series
FLO-TEMP
Bearing Material
Stainless Steel
Parker Interchange
PC224
Coupler Finish
Plain
Operating Temp. Range
-40 Degrees to 440 Degrees F
Coupler Connection Type
Standard Hose Barb
Seal Type
Ball and O-Ring
Coupler Flow Rate
2.0 gpm
Coupler Body Material
Brass
Locking Mechanism
Push and Pull
Valve Design
Ball
Coupler Interchange Type
Moldmate
Includes Valve
No
Finish/Coating
Plain
Pull Ring Material
PTFE
Coupling Component
Socket
Includes Shut Off
No
Max. Flow Rate
7.57 lpm
Maximum Vacuum
28 in Hg
Max. Working Pressure @ 70 F
200 psi
Hose Fitting Gender
Male
Fitting Type
Male Hose Barb
Includes Bearing
Yes

Description

Hydraulic Quick Connect Hose Coupling, Socket, FLO-TEMP Series, Brass, Coupling Size 1/4 in, Male, Max. Working Pressure @ 70 F 200 psi, Max. Flow Rate 7.57 lpm
