Hansen

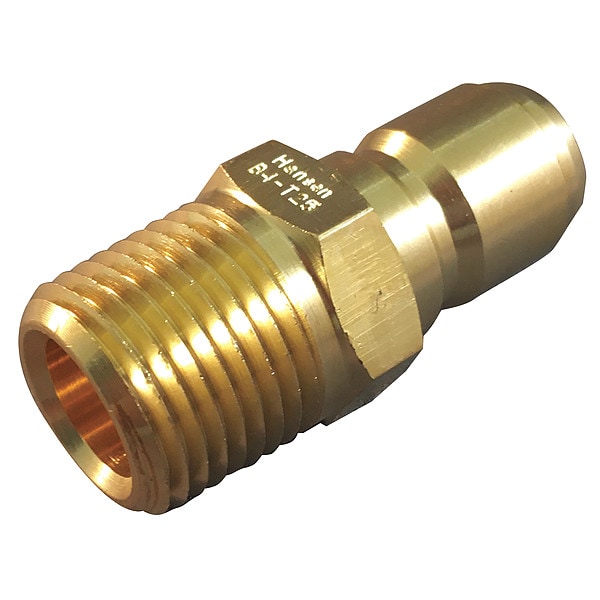

Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 3/8"-18 Thread Size

product price: $4.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coupler Interchange Type ST
  • Connection Type NPT
  • Coupler Thread Size 3/8"-18
  • Coupler Body Size 3/8"
  • Coupler Flow Rate 14.0 gpm
See all product information

Product Information

Dimensions

Coupler Thread Size 3/8"-18
Coupler Body Size 3/8"
Thread Size 3/8"-18
Length 1-11/16"
Overall Length 1 11/16 in
Coupling Size 3/8 in

Details

Item Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type ST
Connection Type NPT
Coupler Flow Rate 14.0 gpm
Max. Pressure 4200 psi
Coupler Body Material Brass
Sleeve Material Brass
Coupler Finish Plain
Series ST
Body Material Brass
Coupling Locking Type Push-to-Connect
Operating Temp. Range -40 Degrees to 250 Degrees F
Valve Design Ball
Bearing Material Stainless Steel
Seal Material Nitrile
Seal Type Ball and O-Ring
Parker Interchange BST-N3M
Coupler Connection Type MNPT
Shut Off No
For Use With ST Series Couplers
Locking Mechanism Push and Pull
Includes Bearing No
Includes Valve No
Max. Working Pressure @ 70 F 4,200 psi
Hose Fitting Gender Male
Fitting Type MNPT
Max. Flow Rate 53 lpm
Coupling Component Plug
Finish/Coating Plain
Pull Ring Material PTFE
Maximum Vacuum 28 in Hg
Includes Shut Off No

Description

Hydraulic Quick Connect Hose Coupling, Plug, ST Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 4,200 psi, Max. Flow Rate 53 lpm
