  6. Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 3/8"-18 Thread Size

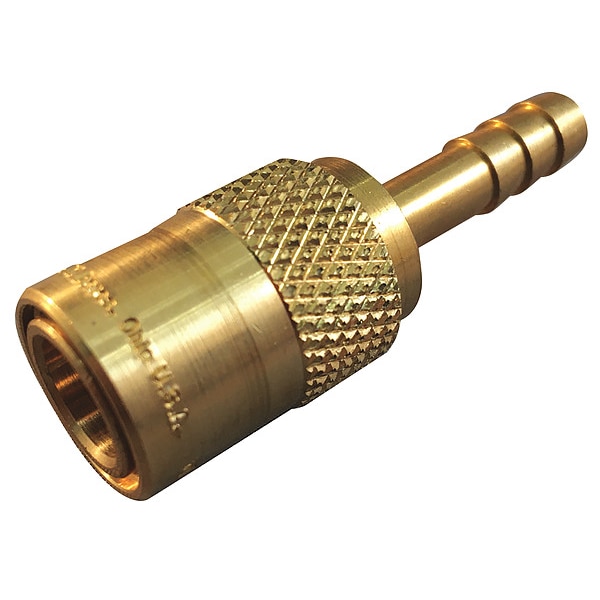

Hansen Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 3/8"-18 Thread Size FTS308 - main

Hydraulic Quick Connect Hose Coupling, Brass Body, Push-to-Connect Lock, 3/8"-18 Thread Size

  • Mfr # FTS308

  • Zoro # G0628093

product price:  $16.15
/ea

Key Features

Body Material
Brass
Seal Material
Silicone
Coupling Locking Type
Push-to-Connect
Max. Pressure
200 psi
Thread Size
3/8"-18
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FTS308
Zoro #
G0628093
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
3/8"-18
Length
2-53/64"
Hose Inside Dia.
1/2"
Coupler Thread Size
3/8 in to 18
Coupler Body Size
3/8 in
Overall Length
2 13/16 in
Coupling Size
3/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Brass
Seal Material
Silicone
Coupling Locking Type
Push-to-Connect
Max. Pressure
200 psi
Connection Type
Hose Barb
Shut Off
No
For Use With
FLO-TEMP Series Plugs
Sleeve Material
Brass
Series
FLO-TEMP
Coupler Finish
Plain
Locking Mechanism
Push and Pull
Bearing Material
Stainless Steel
Coupler Body Material
Brass
Coupler Flow Rate
4 gpm
Valve Design
Ball
Operating Temp. Range
-40 Degrees to 440 Degrees F
Seal Type
Ball and O-Ring
Coupler Connection Type
Standard Hose Barb
Parker Interchange
PC308
Coupler Interchange Type
Moldmate
Hose Fitting Gender
Male
Max. Flow Rate
15.14 lpm
Max. Working Pressure @ 70 F
200 psi
Finish/Coating
Plain
Includes Shut Off
No
Maximum Vacuum
28 in Hg
Coupling Component
Socket
Includes Bearing
Yes
Includes Valve
No
Pull Ring Material
PTFE
Fitting Type
Male Hose Barb
For Hose I.D.
1/2 in

Description

Hydraulic Quick Connect Hose Coupling, Socket, FLO-TEMP Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 200 psi, Max. Flow Rate 15.14 lpm
