Hansen

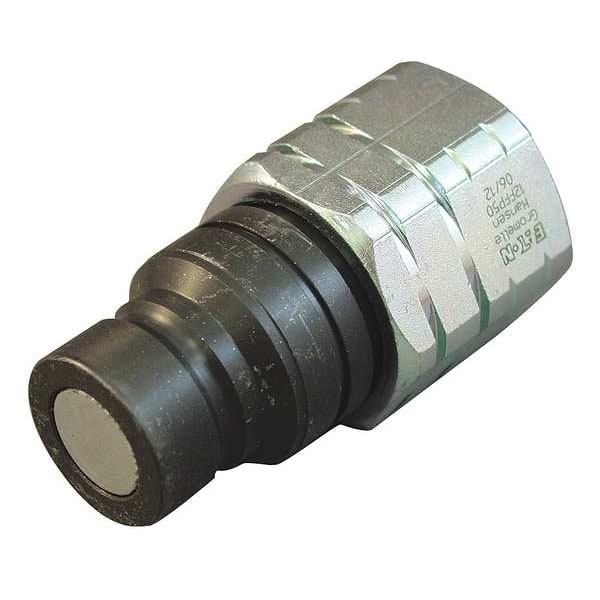

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

original price: $41.18
12% off
new price: $35.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Quick Coupler Type Hydraulic Coupler Nipple
  • Coupler Interchange Type HTMA
  • Connection Type NPT
  • Coupler Thread Size 3/8"-18
  • Coupler Body Size 3/8"
See all product information

Product Information

Dimensions

Coupler Thread Size 3/8"-18
Coupler Body Size 3/8"
Thread Size 3/8"-18
Overall Length 2 9/16 in
Max. Outside Dia. 1 5/32 in
Coupling Size 3/8 in

Details

Quick Coupler Type Hydraulic Coupler Nipple
Item Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type HTMA
Connection Type NPT
Coupler Flow Rate 6.0 gpm
Max. Pressure 5075 psi
Coupler Body Material Zinc Plated Steel
Sleeve Material Zinc Plated Steel
Coupler Finish Clear Chromate
Series FF
Body Material Steel
Coupling Locking Type Push-to-Connect
Operating Temp. Range -4 Degrees to 212 Degrees F
Parker Interchange FEM-372-6FP
Valve Design Tubular
Shut Off Flat Face
Locking Mechanism Standard Sleeve Lock
For Use With 10FFS75UN, Mfr. No. 10FFS37
Seal Material Nitrile
Bearing Material Stainless Steel
Coupler Connection Type FNPT
Standards ISO 16028
Hansen Interchange 10FFP37
Max. Flow Rate 29 lpm
Includes Valve Yes
Includes Bearing Yes
Includes Shut Off Yes
Pull Ring Material PTFE
Coupling Component Plug
Valve Type 2-Way
Finish/Coating Clear Chromate
Fitting Type FNPT
Maximum Vacuum 27.4 in Hg
Max. Working Pressure @ 70 F 5,075 psi
Snap-Tite Interchange 74N6-6F
Hose Fitting Gender Female

Description

Hydraulic Quick Connect Hose Coupling, Plug, FF Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 5,075 psi, Max. Flow Rate 29 lpm
