Shop HANSEN

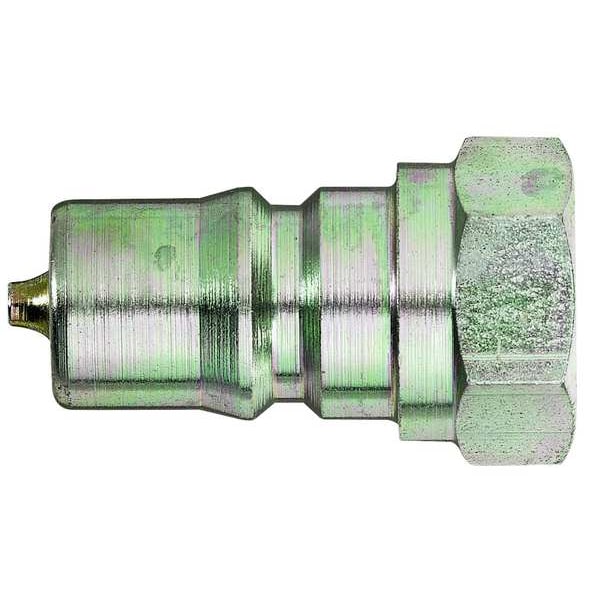

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

  • Mfr # 3K8

  • Zoro # G0698802

product price:  $36.19
/ea

Key Features

Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Push-to-Connect
Max. Pressure
4000 psi
Thread Size
3/8"-18
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3K8
Zoro #
G0698802
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
3/8"-18
Length
1-15/16"
Overall Length
1 15/16 in
Coupler Thread Size
3/8"-18
Coupler Body Size
3/8"
Coupling Size
3/8 in
Wire Rope Length
1 15/16 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Push-to-Connect
Max. Pressure
4000 psi
Connection Type
Threaded
Shut Off
Double
For Use With
HK Series Couplers
Sleeve Material
Carbon Steel
Series
HK
Seal Type
Ball and O-Ring
Standards
ISO 7241-1 Series B
Coupler Connection Type
FSAE
Operating Temp. Range
-40 Degrees to 250 Degrees F
Coupler Body Material
Carbon Steel
Parker Interchange
H3-63-T8
Locking Mechanism
Push and Pull
Valve Design
Poppet
Coupler Finish
Trivalent Chromium Zinc
Bearing Material
Stainless Steel
Coupler Flow Rate
6.0 gpm
Coupler Interchange Type
ISO 7241-1 Series B
Valve Type
Poppet
Pull Ring Material
PTFE
Finish/Coating
Trivalent Chromium Zinc
Max. Working Pressure @ 70 F
4,000 psi
Coupling Component
Plug
Includes Valve
Yes
Fitting Type
FSAE
Max. Flow Rate
22.71 lpm
Includes Shut Off
Yes
Includes Bearing
Yes
Hose Fitting Gender
Female
Maximum Vacuum
28 in Hg
Compatible Series
HK

Description

Hydraulic Quick Connect Hose Coupling, Plug, HK Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 22.71 lpm
