Shop HARRINGTON

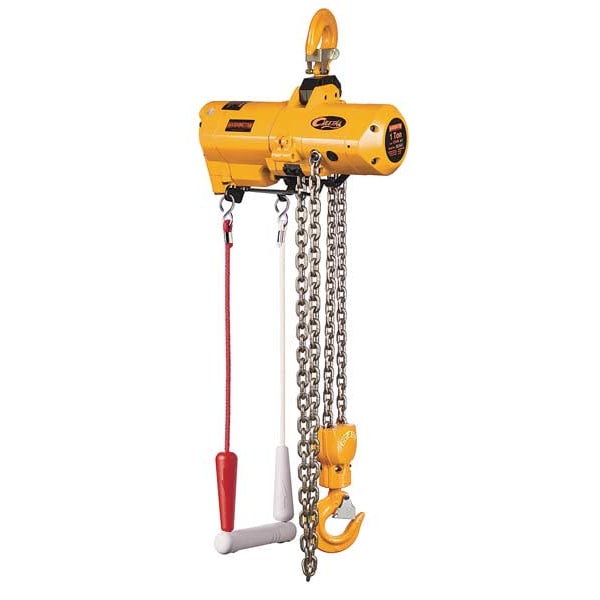

Air Chain Hoist, 2000 lb. Cap., 10 ft. Lft

  • Mfr # TCS1000C2-10

  • Zoro # G7112822

product price:
$
5,762.63
/ea
Free Shipping & Returns

Key Features

Load Capacity
2,000 lb
Housing Length
14 3/8 in
Lift Speed
30 fpm
Hoist Lift
10 ft
Air Consumption
60 scfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TCS1000C2-10
Zoro #
G7112822
UPC #
-
Country of Origin
Japan
Load Capacity
2,000 lb
Lift Speed
30 fpm
Hoist Lift
10 ft
Air Consumption
60 scfm
Series
TCS
Hoist Mount
Hook Mounted - No Trolley
Control
Pull Cord
Min. Between Hooks
17 7/8 in
Reeving
2
Standards
ANSI/ASME B30.17
Color
Yellow
Item
Air Chain Hoist
Trolley Configuration
Hook Mounted - No Trolley
Finish
Acrylic Resin Paint
Air Pressure
90 psi
Brake
Self Adjusting
Noise Level
83 dB
Includes
Chain Container, External Speed Adjustment, Nickle Plated Load Chain
Lifting Hook Material
Carbon Steel
Sound Level
83 dB
Number of Load Chains
2
Body Material
Cast Aluminum
Minimum Air Consumption
60 scfm
Minimum Air Pressure
60 psi
Brake Type
Disc
Included Components
Chain Container, External Speed Adjustment Screws
Lifting Hook Type
Swivel Hook with Safety Latch
Overload Protection Included
Yes
Headroom
18 in
Programmable
Non-Programmable
Chain Grade
Grade 80
Air Inlet Type
NPT
Number of Reeves
2
Includes Brake
Brake Included
Chain Finish
Nickel Plated
Maximum Air Consumption
60 scfm
Includes Clutch
Clutch Not Included
Fixed Lift Speed
30 fpm
Body Finish
Painted
Resistance Properties
Abrasion Resistant, Corrosion Resistant, Wear Resistant
Controls
Pull Cord
Mount Type
Hook Mounted - No Trolley
Air Inlet Gender
Female
Maximum Air Pressure
90 psi
Maximum Lifting Capacity
2,000 lb

Description

Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 2,000 lb, Fixed Lift Speed 30 fpm, Air Inlet Type NPT, Controls Pull Cord, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 18 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 10 ft, Maximum Air Consumption 60 scfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 1/2 in, Body Depth 14 13/32 in, Body Length 14 13/32 in
