Shop HARRINGTON

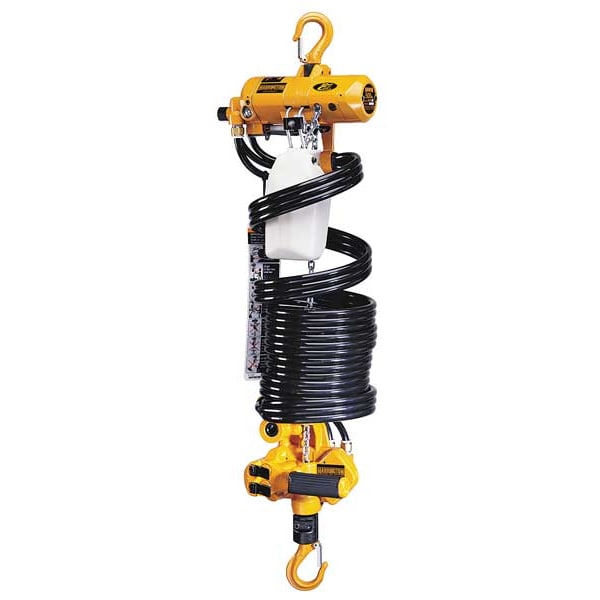

Air Chain Hoist, 500 lb. Cap., 6.5 ft. Lft

  • Mfr # AH500M-6.5

  • Zoro # G0772362

product price:
$
4,198.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
500 lb
Housing Length
9 11/16 in
Hoist Lift
6 1/2 ft
Lift Speed
29 fpm
Air Consumption
26 scfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AH500M-6.5
Zoro #
G0772362
UPC #
-
Country of Origin
Japan
Load Capacity
500 lb
Hoist Lift
6 1/2 ft
Lift Speed
29 fpm
Air Consumption
26 scfm
Hoist Mount
Hook Mounted - No Trolley
Series
AH
Control
Manipulator
Min. Between Hooks
33 in
Reeving
1
Standards
ANSI/ASME B30.17
Color
Yellow
Finish
Acrylic Resin Paint
Air Pressure
90 psi
Noise Level
76 dB
Trolley Configuration
Hook Mounted - No Trolley
Brake
Self Adjusting
Includes
Chain Container, Nickle Plated Load Chain
Item
Air Chain Hoist
Included Components
Chain Container
Number of Load Chains
1
Lifting Hook Material
Carbon Steel
Chain Grade
Grade 80
Air Inlet Type
NPT
Brake Type
Self-Adjusting
Chain Finish
Nickel Plated
Sound Level
76 dB
Minimum Air Consumption
26 cfm
Headroom
33 in
Includes Clutch
Clutch Not Included
Programmable
Non-Programmable
Maximum Air Consumption
34 cfm
Body Finish
Painted
Maximum Lifting Capacity
500 lb
Includes Brake
Brake Included
Minimum Air Pressure
60 psi
Fixed Lift Speed
53 fpm
Maximum Air Pressure
90 psi
Number of Reeves
1
Lifting Hook Type
Swivel Hook with Safety Latch
Air Inlet Gender
Female
Controls
Manipulator
Overload Protection Included
Yes
Body Material
Cast Aluminum
Mount Type
Hook Mounted - No Trolley

Description

Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 500 lb, Fixed Lift Speed 53 fpm, Air Inlet Type NPT, Controls Manipulator, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 33 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 6 1/2 ft, Maximum Air Consumption 34 cfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 11 5/16 in, Body Length 11 5/16 in
