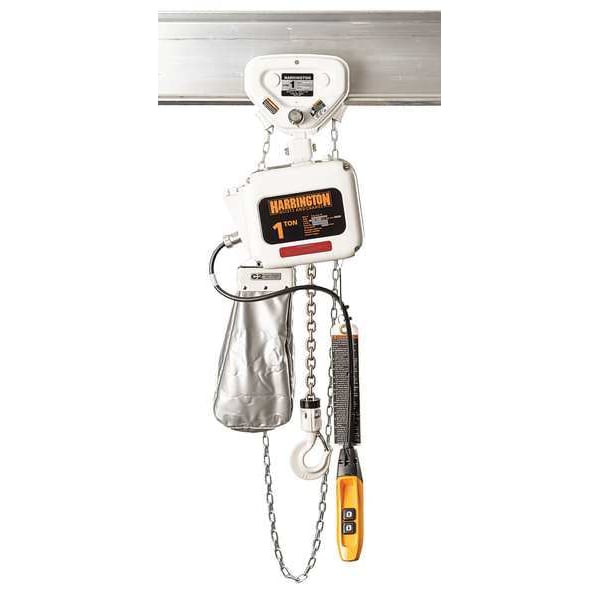

Electric Chain Hoist, 1,000 lb, 20 ft, Geared Trolley, 460V AC, White
Mfr # NERG005LD-FG-20
Zoro # G8913231
product price: $8,961.99
/ea
Free Shipping & Returns
Key Features
Color
White
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Geared Trolley
Includes
Chain Container, Quick Disconnect Plugs On Pendant and Power Cord
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NERG005LD-FG-20
Zoro #
G8913231
UPC #
-
Country of Origin
Japan
Dimensions
Manufacturers Warranty Length
10 yr Brake Warranty, 3 yr
Housing Width
8 1/2 in
Housing Length
22 3/8 in
Housing Depth
16 5/16 in
Trolley Wheel Dia.
2 13/16 in
Body Width
8 1/2 in
Body Depth
16 5/16 in
For Min. Beam Flange Width
2 9/32 in
Lifting Hook Opening Width
16 5/16 in
Trolley Wheel Diameter
2 13/16 in
For Max. Beam Flange Width
4 in
Maximum Lifting Length
20 ft
Minimum Retracted Length
14 19/32 in
Minimum Radius Curve
43 5/16 in
Controller Cord Length
16 ft
Body Length
22 3/8 in
For Minimum Beam Height
3 3/16 in
Mfr. Warranty Length
1 yr
Description
Electric Chain Hoist, Duty Classification H4, Mount Type Geared Trolley, Maximum Lifting Capacity 1,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 2.5 fpm, Maximum Lift Speed 15 fpm, Trolley Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 3.4 A, Current at Maximum Voltage 3.4 A, Motor Horsepower 3/4 hp, Operating Voltage 460V AC, Headroom 16 5/16 in, For Minimum Beam Height 3 3/16 in
