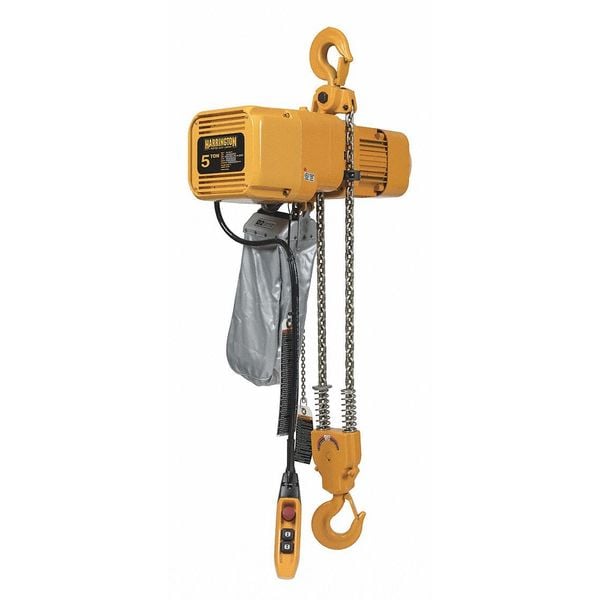

Electric Chain Hoist, 10,000 lb, 30 ft, Hook Mounted - No Trolley, 460V AC, Yellow

  • Mfr # NER050LD-30
  • Zoro # G2153536
product price:
$
11,376.05
/ea
Additional $500.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
30 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NER050LD-30
Zoro #
G2153536
UPC #
-
Country of Origin
Japan

Dimensions

Housing Width
17 1/2 in
Manufacturers Warranty Length
10 yr Brake Warranty, 3 yr
Housing Depth
10 1/2 in
Housing Length
28 29/32 in
Controller Cord Length
26 ft
Lifting Hook Opening Width
1 29/32 in
Body Depth
10 1/2 in
Mfr. Warranty Length
1 yr
Maximum Lifting Length
30 ft
Body Width
17 1/2 in
Body Length
28 29/32 in
Minimum Retracted Length
33 1/2 in
Fits Chest Size
Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Details

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
30 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
Lift Speed
11/2 fpm
Load Capacity
10,000 lb
Min. Between Hooks
33 1/2 in
Motor HP
4.7 hp
Phase
3
Standards
ASME B30.16, ASME HST-1, UL 1340
Voltage
460V AC
Fits Brand
Harrington Hoists Inc
Control Cord
26 ft
Wheel Material
Stamped Steel
Clutch
Friction
Reeving
1
Amps @ Low Volts
16.4 A
Trolley Configuration
Hook Mounted
Thermal Protection
Included
Hz
60 Hz
Finish
Powder Coated
Number of Speeds
2
Control
110V Push Button Control Pendant
Lubrication
Oil Bath
Classification
H4
Item
Electric Chain Hoist
Brake
AC Current
Number of Reeves
1
Features
Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Controls
Push Button Pendant
Includes Clutch
Clutch Included
Motor Horsepower
4 3/4 hp
Overload Protection Included
Yes
Brake Type
DC Current
Resistance Properties
Corrosion Resistant, Wear Resistant
Clutch Type
Friction Clutch
Includes Brake
Brake Included
Chain Grade
Grade 80
Hoist IP Rating
IP55
Pendant IP Rating
IP65
Lifting Hook Material
Carbon Steel
Chain Material
Alloy Steel
Programmable
Programmable by VFD
Body Finish
Powder Coated
Maximum Lifting Capacity
2,000 lb
Included Components
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Minimum Lift Speed
2 fpm
Current at Max. Voltage
8.3 A
Headroom
33 1/2 in
For Outdoor Use
Yes
Lifting Hook Type
Swivel Hook with Safety Latch
Mount Type
Hook Mounted - No Trolley
Body Material
Aluminum
Duty Classification
H4
Current at Min. Voltage
17.3 A
Starts and Stops per Hour
120, 240
Number of Load Chains
1
Maximum Lift Speed
11 fpm
Chain Finish
Nickel Plated
Operating Voltage
460V AC
Wire Color
Yellow

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 2,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 2 fpm, Maximum Lift Speed 11 fpm, Trolley Speed Not Applicable, Maximum Lifting Length 30 ft, Current at Minimum Voltage 17.3 A, Current at Maximum Voltage 8.3 A, Motor Horsepower 4 3/4 hp, Operating Voltage 460V AC, Headroom 33 1/2 in, For Minimum Beam Height Not Applicable
