  13. Electric Chain Hoist, 1000 lb cap.

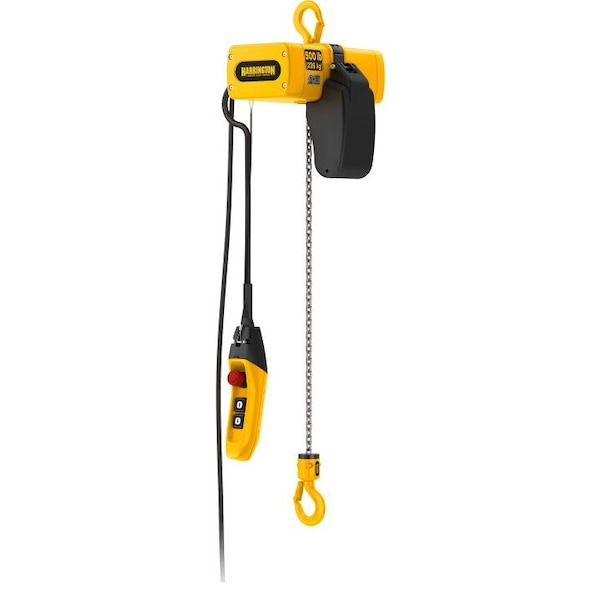

Harrington Electric Chain Hoist, 1000 lb cap. SEM005C-20 - main

Electric Chain Hoist, 1000 lb cap.

  • Mfr # SEM005C-20

  • Zoro # G409843342

product price: $3,984.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SEM005C-20
Zoro #
G409843342
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
42 ft
Body Length
11 1/2 in
Mfr. Warranty Length
5 yr
Body Depth
9 13/32 in
Body Width
11 1/2 in
Minimum Retracted Length
13 19/32 in
Lifting Hook Opening Width
29/32 in
Controller Cord Length
8 3/16 ft
Maximum Lifting Length
20 ft

Details

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Number of Speeds
1
Item
Electric Chain Hoist
Thermal Protection
Included
Programmable
Non-Programmable
Brake Type
Electromagnetic
Duty Classification
H4
Motor Horsepower
1/4 hp
Maximum Lifting Capacity
1,000 lb
Mount Type
Hook Mounted - No Trolley
Overload Protection Included
Yes
Resistance Properties
Corrosion Resistant
Features
LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chain from Tangling when Winding up the Slack
Number of Reeves
2
Chain Material
Nickel Plated
Current at Max. Voltage
2.3 A
Included Components
Chain Container, Pendant, Rubber Bumpers
Number of Load Chains
1
Headroom
13 19/32 in
Clutch Type
Friction Clutch
Chain Finish
Nickel Plated
Includes Brake
Brake Included
Body Material
Die-Cast Aluminum
Fixed Lift Speed
6 fpm
Lifting Hook Material
Steel
Includes Clutch
Clutch Included
For Outdoor Use
Yes
Controls
Push Button Pendant
Current at Min. Voltage
4.6 A
Hoist IP Rating
IP65
Starts and Stops per Hour
300
Lifting Hook Type
Hook with Safety Latch
Chain Grade
Grade 80
Pendant IP Rating
IP65
Operating Voltage
230V AC

Description

Electric Hoists

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
