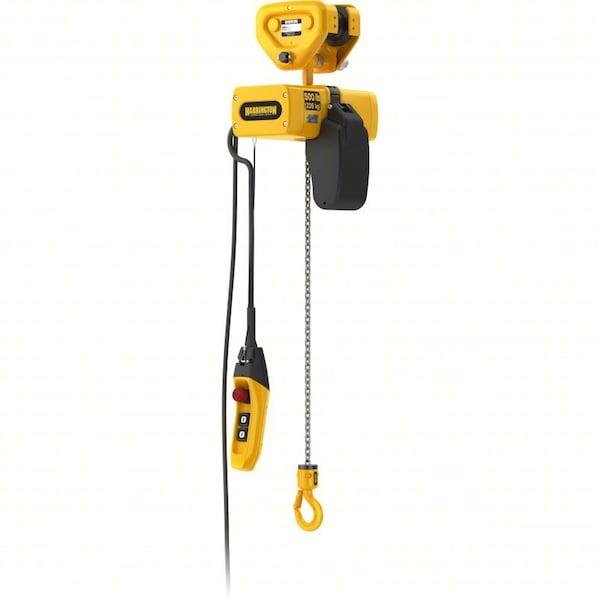

Electric Chain Hoist, 1000 lb cap.

Mfr # SEMP005C-20
Zoro # G409833800

3,739.99

Free Shipping & Returns

Key Features

Color

Yellow

Phase

Standards

ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2

Voltage

230V AC

Thermal Protection

Included

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SEMP005C-20
Zoro #: G409833800
UPC #: -
Country of Origin: Japan

Dimensions

Chain Length: 42 ft
For Minimum Beam Height: 3 1/2 in
Minimum Retracted Length: 14 5/16 in
Minimum Radius Curve: 43 5/16 in
Body Width: 11 1/2 in
Body Length: 11 1/2 in
Body Depth: 9 13/32 in
Controller Cord Length: 8 3/16 ft
Lifting Hook Opening Width: 29/32 in
Maximum Lifting Length: 20 ft
Mfr. Warranty Length: 5 yr
For Min. Beam Flange Width: 2 9/32 in
For Max. Beam Flange Width: 4 in

Details

Color: Yellow
Phase: 1
Standards: ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage: 230V AC
Thermal Protection: Included
Number of Speeds: 1
Item: Electric Chain Hoist
Controls: Push Button Pendant
For Outdoor Use: Yes
Body Material: Die-Cast Aluminum
Pendant IP Rating: IP65
Programmable: Non-Programmable
Trolley Wheel Material: Steel
Includes Brake: Brake Included
Maximum Lifting Capacity: 1,000 lb
Included Components: Chain Container, Pendant, Rubber Bumpers
Number of Load Chains: 1
Duty Classification: H4
Current at Max. Voltage: 2.3 A
Chain Grade: Grade 80
Chain Finish: Nickel Plated
Features: LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chain from Tangling when Winding up the Slack
Overload Protection Included: Yes
Clutch Type: Friction Clutch
Resistance Properties: Corrosion Resistant
Lifting Hook Type: Hook with Safety Latch
Starts and Stops per Hour: 300
Number of Reeves: 2
Fixed Lift Speed: 6 fpm
Headroom: 14 5/16 in
Lifting Hook Material: Steel
Hoist IP Rating: IP65
Motor Horsepower: 1/4 hp
Chain Material: Nickel Plated
Includes Clutch: Clutch Included
Current at Min. Voltage: 4.6 A
Mount Type: Push Trolley
Brake Type: Electromagnetic
Operating Voltage: 230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
