Shop HARRINGTON

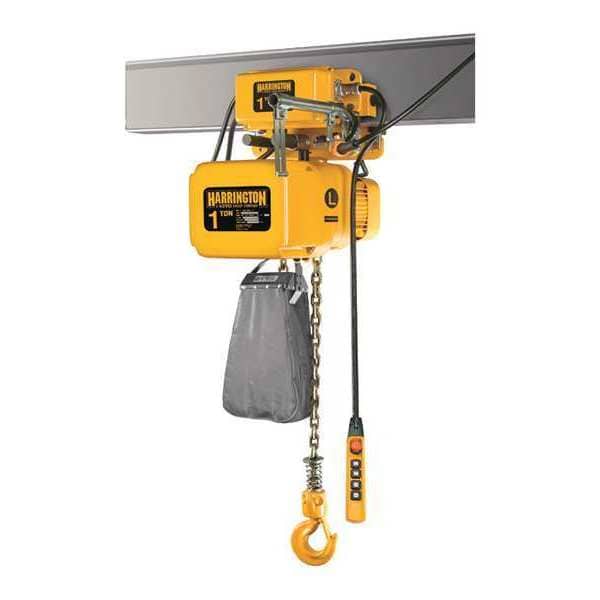

Electric Chain Hoist, 2,000 lb, 20 ft, Motorized Trolley, 208-230/460V AC, Yellow

  • Mfr # NERM010S-L-20

  • Zoro # G0684433

product price:
$
7,765.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Chain Container, Guardian Smart Brake, Motorized Trolley
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NERM010S-L-20
Zoro #
G0684433
UPC #
-
Country of Origin
Japan

Dimensions

Housing Width
15 19/32 in
Trolley Wheel Dia.
2 in
Housing Length
23 1/2 in
Min. Radius Curve
31 1/2 in
Manufacturers Warranty Length
10 yr Brake Warranty, 3 yr
Housing Depth
14 in
Trolley Wheel Diameter
5 1/10 in
For Minimum Beam Height
5 3/32 in
Controller Cord Length
16 ft
Body Depth
14 in
Lifting Hook Opening Width
1 3/16 in
Minimum Radius Curve
31 1/2 in
Maximum Lifting Length
20 ft
For Max. Beam Flange Width
5 in
Body Length
23 1/2 in
For Min. Beam Flange Width
2 9/32 in
Mfr. Warranty Length
1 yr
Minimum Retracted Length
17 3/32 in
Body Width
15 19/32 in

Details

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Chain Container, Guardian Smart Brake, Motorized Trolley
Lift Speed
29 fpm
Load Capacity
2,000 lb
Min. Between Hooks
17 7/64 in
Motor HP
2.4 hp
Phase
3
Standards
ASME B30.16, UL 1340
Voltage
208-230/460V AC
Fits Brand
Harrington Hoists Inc
Trolley Configuration
Motorized Trolley
Reeving
1
Fits Beam Flange W
2-9/32 in to 5 in
Amps @ Low Volts
5.6 A
Clutch
Friction
Lubrication
Oil Bath
Item
Electric Chain Hoist
Control
110V Push Button Control Pendant
Trolley Speed
40 fpm
Control Cord
16 ft
Number of Speeds
1
Thermal Protection
Included
Finish
Electrostatic Enamel
Classification
H4
Brake
DC Current
Material
Aluminum Body
Features
Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers
Includes Brake
Brake Included
Brake Type
DC Current
Trolley Wheel Material
Steel
For Outdoor Use
Yes
Chain Finish
Nickel Plated
Included Components
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook
Includes Clutch
Clutch Included
Lifting Hook Material
Carbon Steel
Duty Classification
H4
Programmable
Non-Programmable
Current at Max. Voltage
1.7 A
Overload Protection Included
Yes
Resistance Properties
Corrosion Resistant
Maximum Lifting Capacity
2,000 lb
Chain Grade
Grade 80
Number of Load Chains
1
Pendant IP Rating
IP65
Clutch Type
Friction
Motor Horsepower
2 3/8 hp
Number of Reeves
1
Body Material
Aluminum
Starts and Stops per Hour
360
Trolley IP Rating
IP55
Current at Min. Voltage
11.8 A
Headroom
17 in
Mount Type
Motorized Trolley
Fixed Lift Speed
28 fpm
Chain Material
Alloy Steel
Hoist IP Rating
IP55
Controls
Push Button Pendant
Lifting Hook Type
Swivel Hook with Safety Latch
Body Finish
Enamel
Operating Voltage
208-230/460V AC

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 2,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 28 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 11.8 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 2 3/8 hp, Operating Voltage 208-230/460V AC, Headroom 17 in, For Minimum Beam Height 5 3/32 in
