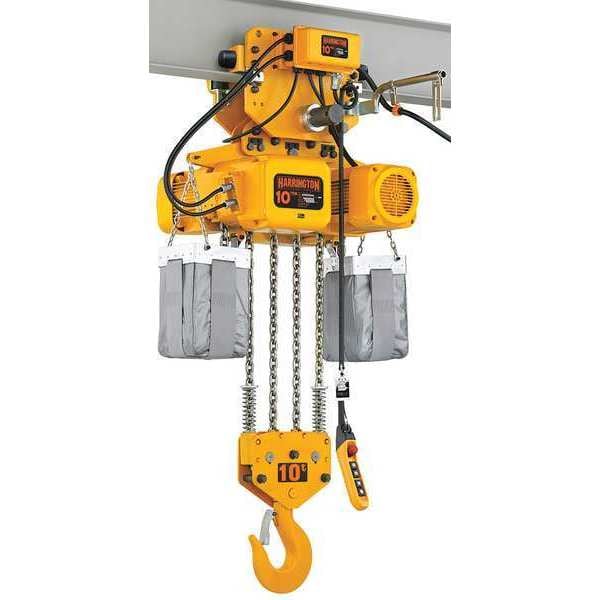

Electric Chain Hoist, 20,000 lb, 20 ft, Motorized Trolley, 230V AC, Yellow
Mfr # NERM100LD-L-20 / 230v
Zoro # G9923392
product price:Â $24,038.99
/ea
Additional $500.00 delivery surcharge applies per item.
Key Features
Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Chain Container, Guardian Smart Brake, Motorized Trolley
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NERM100LD-L-20 / 230v
- Zoro #
- G9923392
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Manufacturers Warranty Length
- 10 yr Brake Warranty, 3 yr
- Housing Width
- 13 1/4 in
- Min. Radius Curve
- 98 3/8 in
- Housing Depth
- 10 1/2 in
- Housing Length
- 28 7/8 in
- Mfr. Warranty Length
- 1 yr
- For Min. Beam Flange Width
- 5 1/2 in
- Lifting Hook Opening Width
- 3 3/16 in
- For Minimum Beam Height
- 6 29/32 in
- Minimum Radius Curve
- 98 13/32 in
- Controller Cord Length
- 16 ft
- Body Depth
- 10 1/2 in
- Body Width
- 13 1/4 in
- Maximum Lifting Length
- 20 ft
- Body Length
- 28 7/8 in
- For Max. Beam Flange Width
- 8 21/32 in
- Trolley Wheel Diameter
- 6 9/10 in
- Minimum Retracted Length
- 46 1/2 in
Description
Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 20,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 2 fpm, Maximum Lift Speed 5.5 fpm, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 22.4 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 4 3/4 hp, Operating Voltage 230V AC, Headroom 46 1/2 in, For Minimum Beam Height 6 29/32 in
