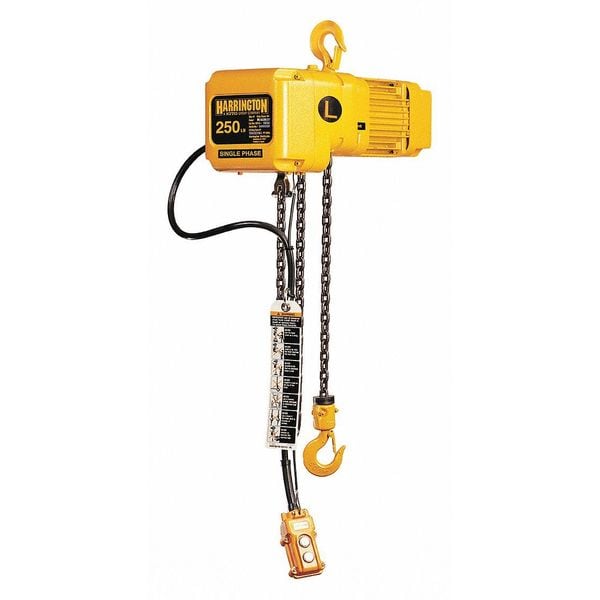

Electric Chain Hoist, 250 lb, 20 ft, Hook Mounted - No Trolley, 115/230V AC, Yellow

  • Mfr # SNER001S-20

  • Zoro # G2372995


product price: $3,226.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNER001S-20
Zoro #
G2372995
UPC #
-
Country of Origin
Japan

Dimensions

Manufacturers Warranty Length
1 yr
Lifting Hook Opening Width
13 3/16 in
Maximum Lifting Length
20 ft
Minimum Retracted Length
13 13/16 in
Mfr. Warranty Length
1 yr

Details

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
Lift Speed
14 fpm
Load Capacity
250 lb
Min. Between Hooks
13 3/16 in
Motor HP
0.34 hp
Phase
1
Standards
ASME B30.16, ASME HST-1M, NFPA 70
Voltage
115/230V AC
Thermal Protection
Yes
Reeving
1
Brake
Pull Rotor
Hz
60
Item
Electric Chain Hoist
Amps @ Low Volts
7.7 A
Clutch
Friction
Finish
Powder Coated
Trolley Configuration
Hook Mounted - No Trolley
Number of Speeds
1
Lubrication
Oil Bath
Classification
H4
Duty Classification
H4
Fixed Lift Speed
14 fpm
Clutch Type
Friction
Pendant IP Rating
IP65
Mount Type
Hook Mounted - No Trolley
Current at Min. Voltage
7.7 A
Number of Load Chains
1
Hoist IP Rating
IP55
Lifting Hook Type
Swivel Hook with Safety Latch
Includes Clutch
Clutch Included
Body Finish
Powder Coated
Number of Reeves
1
Overload Protection Included
Yes
Maximum Lifting Capacity
250 lb
Lifting Hook Material
Carbon Steel
Starts and Stops per Hour
360
Included Components
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Programmable
Non-Programmable
Chain Finish
Powder Coated
Brake Type
Pull Rotor
Headroom
13 3/16 in
Motor Horsepower
3/8 hp
Current at Max. Voltage
7.7 A
Includes Brake
Brake Included
Operating Voltage
115/230V AC

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 250 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 14 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 7.7 A, Current at Maximum Voltage 7.7 A, Motor Horsepower 3/8 hp, Operating Voltage 115/230V AC, Headroom 13 3/16 in
