Shop HARRINGTON

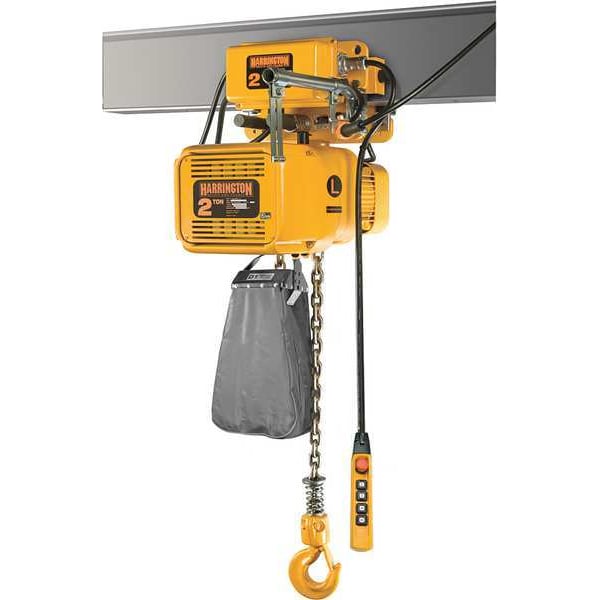

Electric Chain Hoist, 4,000 lb, 20 ft, Motorized Trolley, 460V AC, Yellow

  • Mfr # NERM020CD-L-20 / 460V
  • Zoro # G9925921
product price:
$
9,455.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Motorized Trolley, Safety Latch, Safety Standards
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
NERM020CD-L-20 / 460V
Zoro #
G9925921
UPC #
-
Country of Origin
Japan
Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Motorized Trolley, Safety Latch, Safety Standards
Lift Speed
7/1 fpm
Load Capacity
4,000 lb
Min. Between Hooks
27 13/64 in
Motor HP
1.2 hp
Phase
3
Standards
ANSI/ASME B30.16, ASME HST-1, NFPA 70, RoHS Compliant, UL 1340
Voltage
460V AC
Lubrication
Oil Bath
Thermal Protection
Included
Number of Speeds
2
Item
Electric Chain Hoist
Classification
H4
Reeving
2
Finish
Electrostatic Enamel
Hz
60 Hz
Clutch
Friction
Control Cord
16 ft
Trolley Speed
40 fpm
Wheel Material
Stamped Steel
Amps @ Low Volts
5.1 A
Brake
DC Current
Trolley Configuration
Motorized Trolley
Control
110V Push Button Control Pendant
Features
Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers
Trolley IP Rating
IP55
Starts and Stops per Hour
120, 240
Body Finish
Enamel
Current at Max. Voltage
1.7 A
Maximum Lifting Capacity
4,000 lb
Programmable
Programmable by VFD
Trolley Wheel Material
Steel
Maximum Lift Speed
7 fpm
Hoist IP Rating
IP55
Brake Type
DC Current
Mount Type
Motorized Trolley
Motor Horsepower
1 1/4 hp
Included Components
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook
Lifting Hook Material
Carbon Steel
Clutch Type
Friction
Minimum Lift Speed
1 fpm
Chain Material
Alloy Steel
Controls
Push Button Pendant
Lifting Hook Type
Swivel Hook with Safety Latch
Headroom
27 3/16 in
Chain Finish
Nickel Plated
Includes Clutch
Clutch Included
Includes Brake
Brake Included
Current at Min. Voltage
5.1 A
Duty Classification
H4
For Outdoor Use
Yes
Number of Load Chains
1
Number of Reeves
2
Resistance Properties
Corrosion Resistant
Pendant IP Rating
IP65
Chain Grade
Grade 80
Body Material
Aluminum
Overload Protection Included
Yes
Operating Voltage
460V AC

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 1 fpm, Maximum Lift Speed 7 fpm, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 5.1 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 1 1/4 hp, Operating Voltage 460V AC, Headroom 27 3/16 in, For Minimum Beam Height 4 29/32 in
