  13. Electric Chain Hoist, 500 lb cap.

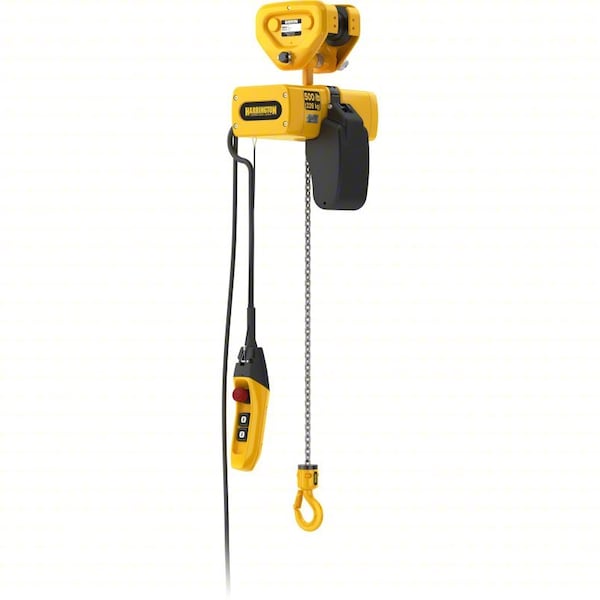

Harrington Electric Chain Hoist, 500 lb cap. EMP003L-60 - main

Electric Chain Hoist, 500 lb cap.

  • Mfr # EMP003L-60

  • Zoro # G009833729

product price: $5,536.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Phase
3
Standards
ASME, FEM, ISO, UL 1340/CSA 22.2
Voltage
230V AC
Chain Length
61 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EMP003L-60
Zoro #
G009833729
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
61 ft
Body Length
11 1/2 in
Controller Cord Length
8 3/16 ft
Mfr. Warranty Length
5 yr
Maximum Lifting Length
60 ft
Body Depth
7 29/32 in
Minimum Retracted Length
12 3/16 in
For Minimum Beam Height
3 1/2 in
For Min. Beam Flange Width
2 9/32 in
Body Width
11 1/2 in
For Max. Beam Flange Width
4 in
Lifting Hook Opening Width
29/32 in
Minimum Radius Curve
43 5/16 in

Details

Color
Yellow
Phase
3
Standards
ASME, FEM, ISO, UL 1340/CSA 22.2
Voltage
230V AC
Thermal Protection
Included
Number of Speeds
1
Item
Electric Chain Hoist
Current at Min. Voltage
1.4 A
Mount Type
Push Trolley
Controls
Push Button Pendant
Current at Max. Voltage
1.4 A
Includes Brake
Brake Included
Brake Type
Electromagnetic
Clutch Type
Friction Clutch
Resistance Properties
Corrosion Resistant
Includes Clutch
Clutch Included
Programmable
Non-Programmable
Starts and Stops per Hour
300
Pendant IP Rating
IP65
Duty Classification
H4
Lifting Hook Material
Steel
Fixed Lift Speed
16 fpm
For Outdoor Use
Yes
Chain Grade
Grade 80
Chain Finish
Nickel Plated
Headroom
12 3/16 in
Hoist IP Rating
IP65
Number of Reeves
1
Maximum Lifting Capacity
500 lb
Lifting Hook Type
Hook with Safety Latch
Features
Fits Tapered or Flat-Flanged Beams, Upper Limit Switch, Non-Drip, Grease Packed Gear Box, Solid State Relay Board, Unique Chain Guide
Overload Protection Included
Yes
Motor Horsepower
3/8 hp
Included Components
Chain Container, Pendant, Rubber Bumpers
Chain Material
Nickel Plated
Trolley Wheel Material
Steel
Number of Load Chains
1
Body Material
Die-Cast Aluminum
Operating Voltage
230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
