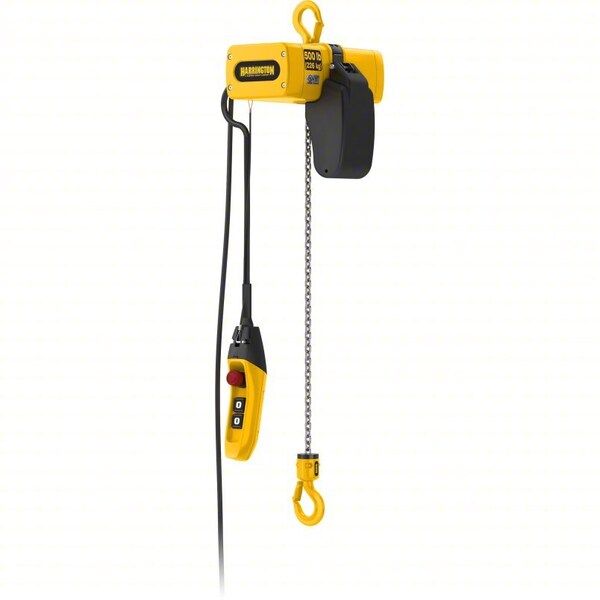

Harrington Electric Chain Hoist, 500 lb cap. SEM003L-15 - main

Electric Chain Hoist, 500 lb cap.

  • Mfr # SEM003L-15

  • Zoro # G909833812

product price: $3,110.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SEM003L-15
Zoro #
G909833812
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
16 ft
Mfr. Warranty Length
5 yr
Body Depth
7 29/32 in
Body Width
11 1/2 in
Minimum Retracted Length
11 19/32 in
Maximum Lifting Length
15 ft
Controller Cord Length
8 3/16 ft
Lifting Hook Opening Width
29/32 in
Body Length
11 1/2 in

Details

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Number of Speeds
1
Thermal Protection
Included
Item
Electric Chain Hoist
Lifting Hook Type
Hook with Safety Latch
Number of Reeves
1
Programmable
Non-Programmable
Includes Brake
Brake Included
Mount Type
Hook Mounted - No Trolley
Motor Horsepower
1/4 hp
Body Material
Die-Cast Aluminum
Clutch Type
Friction Clutch
Number of Load Chains
1
Hoist IP Rating
IP65
Included Components
Chain Container, Pendant, Rubber Bumpers
Current at Min. Voltage
4.6 A
For Outdoor Use
Yes
Chain Finish
Nickel Plated
Chain Material
Nickel Plated
Overload Protection Included
Yes
Controls
Push Button Pendant
Chain Grade
Grade 80
Duty Classification
H4
Features
LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chain from Tangling when Winding up the Slack
Lifting Hook Material
Steel
Fixed Lift Speed
12 fpm
Resistance Properties
Corrosion Resistant
Brake Type
Electromagnetic
Pendant IP Rating
IP65
Current at Max. Voltage
2.3 A
Includes Clutch
Clutch Included
Maximum Lifting Capacity
500 lb
Starts and Stops per Hour
300
Headroom
11 19/32 in
Operating Voltage
230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
