  13. Electric Chain Hoist, 500 lb cap.

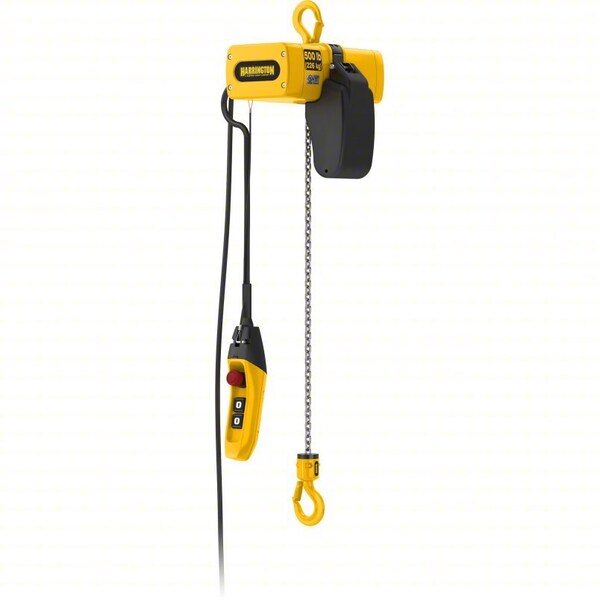

Harrington Electric Chain Hoist, 500 lb cap. SEM003L-60 - main

Electric Chain Hoist, 500 lb cap.

  • Mfr # SEM003L-60

  • Zoro # G309833726

product price: $4,852.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Chain Length
61 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SEM003L-60
Zoro #
G309833726
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
61 ft
Minimum Retracted Length
11 19/32 in
Body Depth
7 29/32 in
Body Width
11 1/2 in
Mfr. Warranty Length
5 yr
Body Length
11 1/2 in
Maximum Lifting Length
60 ft
Lifting Hook Opening Width
29/32 in
Controller Cord Length
8 3/16 ft

Details

Color
Yellow
Phase
1
Standards
ASME B30.16, ASME H4, FEM, ISO M5, UL 1340/CSA 22.2
Voltage
230V AC
Item
Electric Chain Hoist
Number of Speeds
1
Thermal Protection
Included
Clutch Type
Friction Clutch
Duty Classification
H4
For Outdoor Use
Yes
Includes Brake
Brake Included
Lifting Hook Material
Steel
Hoist IP Rating
IP65
Features
LED Error Indicator, Protects the Hoist from Over winding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chain from Tangling when Winding up the Slack
Body Material
Die-Cast Aluminum
Pendant IP Rating
IP65
Fixed Lift Speed
12 fpm
Current at Min. Voltage
4.6 A
Brake Type
Electromagnetic
Mount Type
Hook Mounted - No Trolley
Programmable
Non-Programmable
Starts and Stops per Hour
300
Resistance Properties
Corrosion Resistant
Overload Protection Included
Yes
Includes Clutch
Clutch Included
Included Components
Chain Container, Pendant, Rubber Bumpers
Number of Reeves
1
Maximum Lifting Capacity
500 lb
Lifting Hook Type
Hook with Safety Latch
Motor Horsepower
1/4 hp
Number of Load Chains
1
Headroom
11 19/32 in
Chain Material
Nickel Plated
Controls
Push Button Pendant
Current at Max. Voltage
2.3 A
Chain Finish
Nickel Plated
Chain Grade
Grade 80
Operating Voltage
230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
