Shop HARRINGTON

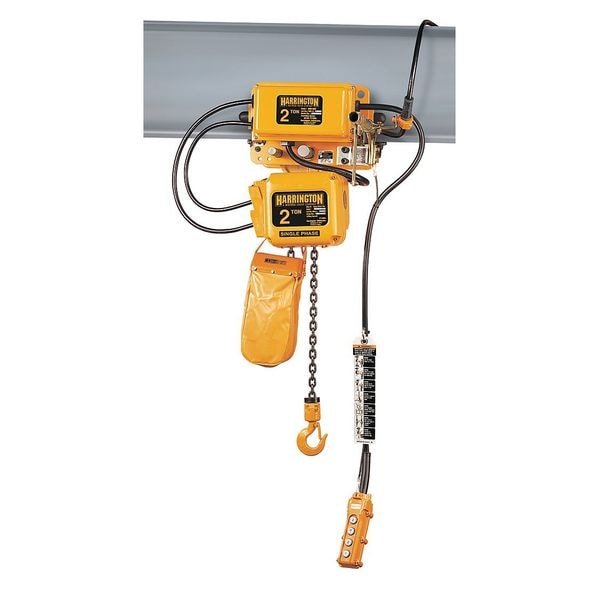

Electric Chain Hoist, 6,000 lb, 20 ft, Motorized Trolley, 115/230V AC, Yellow

  • Mfr # SNERM030C-L-20

  • Zoro # G9857504

product price:
$
11,163.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Mount
Motorized Trolley
Includes
Chain Container, Drop Stops, Motorized Trolley, Rubber Bumpers, Trolley Brakes
Lift Speed
3.5 fpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNERM030C-L-20
Zoro #
G9857504
UPC #
-
Country of Origin
Japan

Dimensions

Housing Width
17 7/16 in
Housing Length
26 15/16 in
Manufacturers Warranty Length
1 yr
Housing Depth
26 in
Maximum Lifting Length
20 ft
Body Length
26 15/16 in
Body Width
17 7/16 in
For Min. Beam Flange Width
3 7/32 in
Controller Cord Length
16 ft
Minimum Radius Curve
39 13/32 in
Minimum Retracted Length
28 29/32 in
Lifting Hook Opening Width
1 11/16 in
Mfr. Warranty Length
1 yr
Trolley Wheel Diameter
4 23/25 in
Body Depth
26 in
For Max. Beam Flange Width
6 3/16 in
For Minimum Beam Height
5 3/16 in

Details

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Motorized Trolley
Includes
Chain Container, Drop Stops, Motorized Trolley, Rubber Bumpers, Trolley Brakes
Lift Speed
3.5 fpm
Load Capacity
6,000 lb
Min. Between Hooks
28 15/16 in
Motor HP
1.2 hp
Phase
1
Standards
ASME B30.16, ASME HST-1, NFPA 70
Voltage
115/230V AC
Fits Brand
Harrington Hoists Inc
Item
Electric Chain Hoist
Control Cord
16 ft
Clutch
Friction
Amps @ Low Volts
23.9 A
Trolley Configuration
Motorized Trolley
Finish
Electrostatic Enamel
Brake
Pull Rotor Motor
Thermal Protection
Not Available and Not Included
Fits Beam Flange W
3-7/32 in to 6-3/16 in
Number of Speeds
1
Lubrication
Oil Bath
Trolley Speed
40 fpm
Control
110V Push Button Control Pendant
Reeving
2
Classification
H4
Material
Die Cast Aluminum
Features
Extreme-Duty, Fan-Cooled Motor, Oil Bath-Lubricated, Heat-Treated Gearing, Pendant Plug-In Connections, Sealed Protection, Self-Adjusting Maintenance-Free Brake
Clutch Type
Friction Clutch
Resistance Properties
Corrosion Resistant
Number of Reeves
2
Fixed Lift Speed
3.5 fpm
Current at Max. Voltage
12 A
Lifting Hook Type
Swivel Hook with Safety Latch
Chain Grade
Grade 80
Chain Material
Alloy Steel
Overload Protection Included
Yes
For Outdoor Use
Yes
Programmable
Non-Programmable
Hoist IP Rating
IP55
Current at Min. Voltage
23.9 A
Body Finish
Enamel
Number of Load Chains
1
Includes Brake
Brake Included
Trolley IP Rating
IP55
Motor Horsepower
1 1/4 hp
Duty Classification
H4
Brake Type
Pull Rotor
Body Material
Aluminum
Trolley Wheel Material
Steel
Included Components
Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook
Lifting Hook Material
Carbon Steel
Chain Finish
Nickel Plated
Controls
Push Button Pendant
Headroom
28 29/32 in
Pendant IP Rating
IP65
Mount Type
Motorized Trolley
Starts and Stops per Hour
360
Maximum Lifting Capacity
6,000 lb
Includes Clutch
Clutch Included
Operating Voltage
115/230V AC

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 6,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 3.5 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 23.9 A, Current at Maximum Voltage 12 A, Motor Horsepower 1 1/4 hp, Operating Voltage 115/230V AC, Headroom 28 29/32 in, For Minimum Beam Height 5 3/16 in
