  13. Lever Chain Hoist, 1,500 lb Load Capacity, 10 ft Hoist Lift, 15/16 in Hook Opening
Shop All Lever Chain Hoists
Harrington

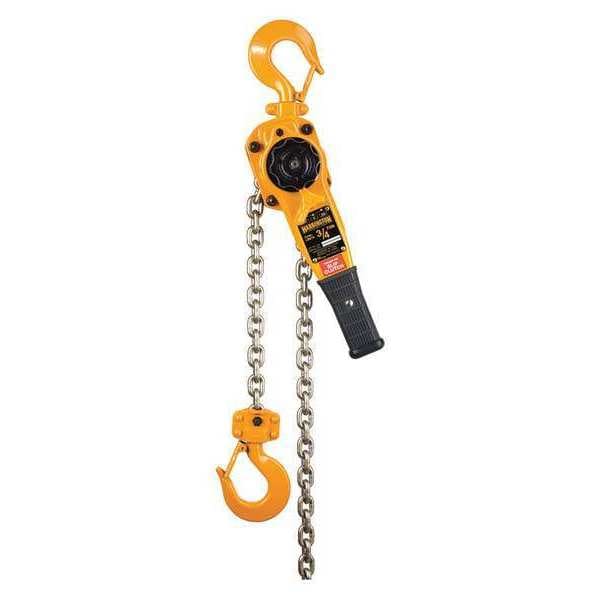

Lever Chain Hoist, 1,500 lb Load Capacity, 10 ft Hoist Lift, 15/16 in Hook Opening

product price: $766.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 1,500 lb
  • Hoist Lift 10 ft
  • Includes Safety Latch Hooks
  • Chain Length 11 ft
  • Hook Opening 15/16 in
See all product information

Product Information

Dimensions

Chain Length 11 ft
Lever Length 9 19/32 in
Manufacturers Warranty Length 1 yr
Mfr. Warranty Length 1 yr
Lifting Hook Opening Width 29/32 in
Body Depth 5 11/16 in
Maximum Lifting Length 10 ft
Minimum Retracted Length 11 in
Body Width 4 11/16 in

Details

Item Lever Chain Hoist
Load Capacity 1,500 lb
Hoist Lift 10 ft
Includes Safety Latch Hooks
Hook Opening 15/16 in
Chain Nickel Plated
Standards ANSI/ASME B30.21, ANSI/ASME HST-3M
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 36 lb
Min. Between Hooks 11 in
Brake Weston Style Load Brake with Slip Clutch
Finish Painted
Reeving 1
Trolley Configuration Hook Mounted - No Trolley
Color Yellow
Features Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates
Overload Protection Included Yes
Chain Finish Nickel Plated
Number of Load Chains 1
Headroom 11 in
Chain Grade Grade 100
Number of Reeves 1
Body Material Steel
Lifting Hook Material Carbon Steel
Maximum Pulling Capacity 1,500 lb
Lifting Hook Type Hook with Safety Latch
Operating Position Horizontal, Vertical
Includes Brake Brake Included
Included Components Safety Latch Hooks
Power Source Lever
Includes Clutch Clutch Included
Brake Type Weston Style
Chain Material Nickel Plated
Maximum Lifting Capacity 1,500 lb
Mount Type Hook Mounted - No Trolley
Resistance Properties Corrosion Resistant, Wear Resistant
Body Finish Powder Coated

Description

Lever Chain Hoist, Chain Length 11 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,500 lb, Maximum Lifting Length 10 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 11/16 in, Body Material Steel, Body Width 4 11/16 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Nickel Plated, Color Yellow
