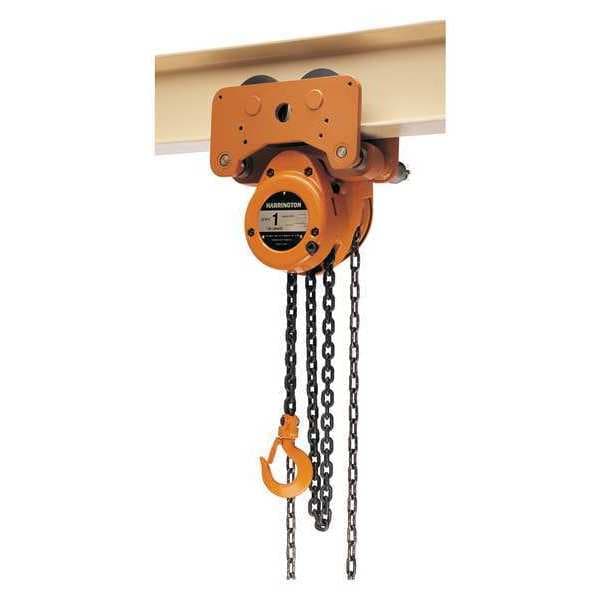

Harrington Low Headroom Chain Hoist, 10 ft.Lift NTH010-10 - main

Low Headroom Chain Hoist, 10 ft.Lift

  • Mfr # NTH010-10

  • Zoro # G1855108

product price: $1,591.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
2,000 lb
Hoist Lift
10 ft
Hoist Mount
Push Trolley
Hoist Overload Protection
No
Pull to Lift Rated Load
72 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NTH010-10
Zoro #
G1855108
UPC #
-
Country of Origin
United States

Dimensions

Housing Length
12 1/2 in
Housing Width
11 in
Housing Depth
8 in
Manufacturers Warranty Length
2 yr
Lifting Hook Opening Width
1 3/32 in
For Min. Beam Flange Width
2 5/16 in
Minimum Retracted Length
12 1/2 in
Body Depth
8 3/32 in
Mfr. Warranty Length
2 yr
Body Width
10 29/32 in
Chain Length
11 ft
For Max. Beam Flange Width
5 5/32 in
Maximum Lifting Length
10 ft
For Min. Beam Flange Height
3 1/2 in

Details

Load Capacity
2,000 lb
Hoist Lift
10 ft
Hoist Mount
Push Trolley
Hoist Overload Protection
No
Pull to Lift Rated Load
72 lb
Min. Between Hooks
12 1/2 in
Hook Opening
1 7/64 in
Item
Chain Hoist
Brake
Weston Style Brake
Trolley Configuration
Push Trolley
Fits Beam Flange W
2 5/16 in to 5 3/16 in
Standards
ANSI/ASME B30.16, ANSI/ASME HST-2M
Color
Yellow
Resistance Properties
Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant
Lifting Hook Type
Hook with Safety Latch
Includes Clutch
Clutch Not Included
Brake Type
Weston Style
Number of Reeves
1
Mount Type
Push Trolley
Body Material
Die-Cast Aluminum
Number of Load Chains
1
Lifting Hook Material
Carbon Steel
Includes Brake
Brake Included
Chain Material
Manganese Alloy
Overload Protection Included
No
Operating Position
Vertical
Features
Integral Trolley
Included Components
Safety Latch Hooks
Maximum Lifting Capacity
2,000 lb
Chain Grade
Grade 100
Headroom
12 1/2 in
Power Source
Manual

Description

Manual Chain Hoist, Chain Length 11 ft, For Minimum Beam Flange Width 2 5/16 in, For Maximum Beam Flange Width 5 5/32 in, Headroom 12 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 2,000 lb, Maximum Lifting Length 10 ft, Mount Type Push Trolley, Body Depth 8 3/32 in, Body Material Die-Cast Aluminum, Body Width 10 29/32 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Manganese Alloy, Color Yellow
