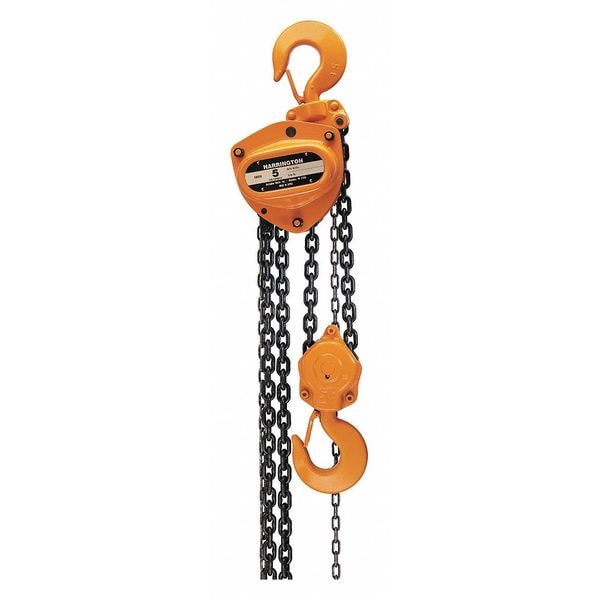

Manual Chain Hoist, 20 ft.Lift

Mfr # CB150-20
Zoro # G2153588

6,935.57

Additional $220.00 delivery surcharge applies per item.

Key Features

Load Capacity

30,000 lb

Hoist Lift

20 ft

Hoist Mount

Hook Mounted - No Trolley

Hoist Overload Protection

Yes

Pull to Lift Rated Load

74 lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CB150-20
Zoro #: G2153588
UPC #: -
Country of Origin: Japan

Dimensions

Housing Length: 40 13/64 in
Housing Width: 19 1/2 in
Housing Depth: 19 1/2 in
Manufacturers Warranty Length: 2 yr
Chain Length: 21 ft
Maximum Lifting Length: 20 ft
Minimum Retracted Length: 40 3/16 in
Body Depth: 10 19/32 in
Lifting Hook Opening Width: 3 3/32 in
Body Width: 19 13/32 in
Mfr. Warranty Length: 2 yr

Details

Load Capacity: 30,000 lb
Hoist Lift: 20 ft
Hoist Mount: Hook Mounted - No Trolley
Hoist Overload Protection: Yes
Pull to Lift Rated Load: 74 lb
Min. Between Hooks: 40 1/4 in
Hook Opening: 3 7/64 in
Item: Manual Chain Hoist
Includes: 18-1/2 ft Hand Chain
Brake: Weston Style Brake
Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Trolley Configuration: Hook Mounted - No Trolley
Features: Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Color: Yellow
Maximum Lifting Capacity: 30,000 lb
Chain Grade: Grade 100
Lifting Hook Type: Hook with Safety Latch
Power Source: Manual
Includes Brake: Brake Included
Chain Material: Manganese Alloy
Overload Protection Included: Yes
Included Components: Safety Latch Hooks
Body Material: Steel
Resistance Properties: Abrasion Resistant, Corrosion Resistant
Lifting Hook Material: Carbon Steel
Number of Reeves: 6
Headroom: 40 3/16 in
Brake Type: Weston Style
Mount Type: Hook Mounted - No Trolley
Number of Load Chains: 1
Includes Clutch: Clutch Included
Operating Position: Vertical
Power Source - TS Only: Manual
Power Source - old: Manual

Description

Manual Chain Hoist, Chain Length 21 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 40 3/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 30,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 10 19/32 in, Body Material Steel, Body Width 19 13/32 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Manganese Alloy, Color Yellow
