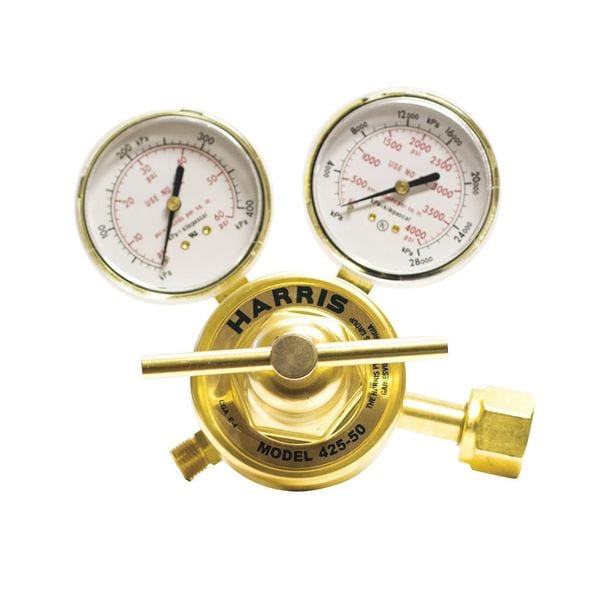

Harris Gas Regulator, Oxygen, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 0 to 50 psi 425-50-540 - main

Gas Regulator, Oxygen, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 0 to 50 psi

  • Mfr # 425-50-540

  • Zoro # G1641157

product price:  $241.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Oxygen
Outlet Connection Size
9/16"-18
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
425-50-540
Zoro #
G1641157
UPC #
725636302235
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.825"-14
Overall Length
6-3/4"
Overall Width
6.75 in
Overall Height
6.5 in
Overall Depth
4.5 in
Body Diameter
2.75 in
Dedupe with CGA Number and Inlet Connection Size
CGA 540

Details

Item
Gas Regulator
Compatible Gas Type
Oxygen
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Regulator Capacity
Heavy Duty
Gauges Delivery Pressure
60 psig
Supply Pressure Gauge
4,000 psi
Standards
CGA E-4, UL Listed
Delivery Pressure Range
0 to 50 psi
Stages
Single Stage
Regulator Application
General Purpose
Application
Industrial Purpose
Diaphragm Material
Neoprene
Type
Single Stage Cylinder
Features
Designed to Make it a Rugged, Long-Lasting Performer, Including An Exclusive Tamper-Proof, Self-Reseating Internal Hp Safety Valve, Pipelines Classic Kits
Duty Rating
Heavy Duty
Inlet Pressure (Maximum)
3,000 psig
Inlet Connection Gender
Male
CGA Number
CGA 540
Control Type
T-Handle
Maximum Gauge Outlet Pressure
4,000 psig
Inlet Thread Direction
Right Hand
Body Finish
Chrome Plated
Outlet Connection Gender
Male
Regulator Series
425
Outlet Connection Type
UNF
Inlet Connection Type
NGO
Flow Coefficient
0.17
Seal Material
PTFE
Outlet Thread Direction
Right Hand

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Chrome Plated, Diaphragm Material Neoprene, CGA Number CGA 540, Application Industrial Purpose
