  5. Gas Regulator, Oxygen, Single Stage, 0.965"-14 Inlet, 9/16"-18 Outlet, 0 to 125 psi

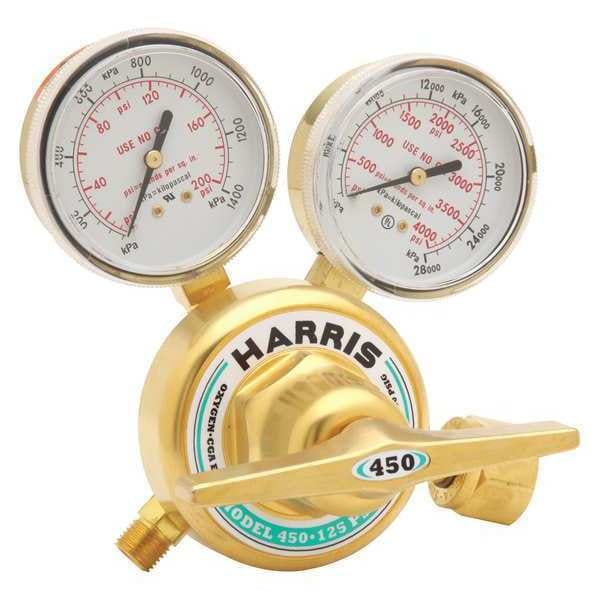

Harris Gas Regulator, Oxygen, Single Stage, 0.965"-14 Inlet, 9/16"-18 Outlet, 0 to 125 psi 3002497 - main

Gas Regulator, Oxygen, Single Stage, 0.965"-14 Inlet, 9/16"-18 Outlet, 0 to 125 psi

  • Mfr # 3002497

  • Zoro # G3963471

product price:  $270.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Oxygen
Outlet Connection Size
9/16"-18
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
125 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3002497
Zoro #
G3963471
UPC #
725636314078
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.965"-14
Overall Length
6"
Overall Height
6.62 in
Overall Depth
4.75 in
Body Diameter
3 in
Overall Width
7.28 in
Dedupe with CGA Number and Inlet Connection Size
CGA 540

Details

Item
Gas Regulator
Compatible Gas Type
Oxygen
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
125 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Regulator Application
General Purpose
Delivery Pressure Range
0 to 125 psi
Delivery
125 psi
Diaphragm Material
Stainless Steel
Gauges Delivery Pressure
200 psi
Supply Pressure Gauge
4,000 psi
Application
Industrial Purpose
Regulator Capacity
Heavy Duty
Stages
Single Stage
Standards
CGA E-4, UL Listed
Features
Exclusive Tamper-Proof, Self-Seating Safety Relief Device
Duty Rating
Heavy Duty
Inlet Connection Gender
Male
Inlet Connection Type
NGO
Regulator Series
450
Outlet Connection Gender
Male
Outlet Thread Direction
Right Hand
Inlet Pressure (Maximum)
3,000 psig
Control Type
T-Handle
Seal Material
PTFE
Inlet Thread Direction
Right Hand
Flow Coefficient
0.17
Body Finish
Chrome Plated
CGA Number
CGA 540
Outlet Connection Type
UNF
Maximum Gauge Outlet Pressure
4,000 psig

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 125 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Chrome Plated, Diaphragm Material Stainless Steel, CGA Number CGA 540, Application Industrial Purpose
