  9. High Pressure Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

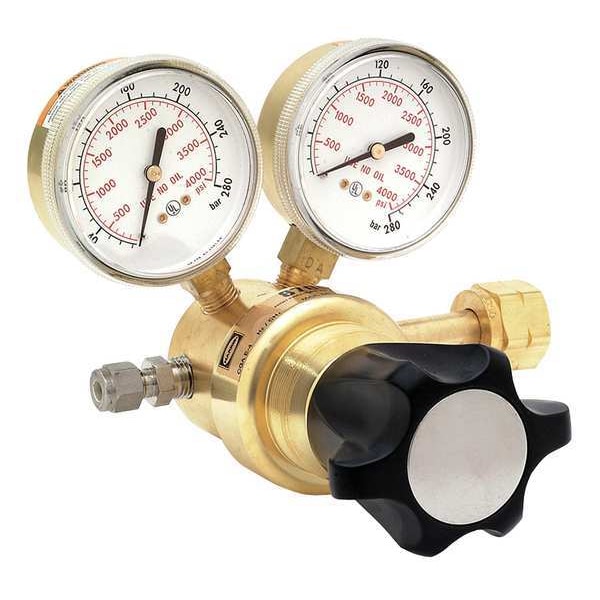

Harris High Pressure Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet KH1114 - main

High Pressure Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1114

  • Zoro # G6477335

product price: $793.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon, Helium, Nitrogen
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
1,500 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
KH1114
Zoro #
G6477335
UPC #
725636316119
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.965"-14
Overall Length
7-1/2"
Overall Depth
6.21 in
Body Diameter
2 in
Overall Width
6.98 in
Overall Height
5.01 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
High Pressure Gas Regulator
Compatible Gas Type
Argon, Helium, Nitrogen
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
1,500 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Stages
Single Stage
Supply Pressure Gauge
4,000 psi
Delivery Pressure Range
0 to 1500 psi
Diaphragm Material
Urethane
Includes
Harris Model 8700 Single Stage Regulator
Gauges Delivery Pressure
3000 psi
Regulator Application
High Pressure
Standards
CGA E-4, UL Listed
Application
High Pressure Testing
Delivery
0 to 1500 psi
Type
Single Stage
Features
Charging Accumulators, Pressurizing Aircraft Struts
CGA Number
CGA 580
Seat Material
PCTFE
Inlet Pressure (Maximum)
3,000 psig
Bonnet Material
Brass
Helium Leak Integrity Rating
1.00 x 10^-9 cc/sec
Inlet Thread Direction
Right Hand
Inlet Connection Gender
Male
Body Finish
Chrome Plated
Flow Coefficient
0.08
Inlet Connection Type
NGO
Outlet Connection Type
Tube Fitting
Regulator Series
HP 8700
Control Type
Knob
Outlet Connection Gender
Female
Filter Material
Nickel Plated Bronze
Outlet Thread Direction
Right Hand
Gas Purity Rating
99.9999 %
Seal Material
PCTFE

Description

High Pressure Gas Regulator, Mounting Type Cylinder, Number of Stages Single Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type Knob, Maximum Inlet Pressure 3,000 psig, Inlet Connection Size 0.965 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Right Hand, Outlet Pressure (Maximum) 1,500 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type Tube Fitting, Outlet Thread Direction Right Hand

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
