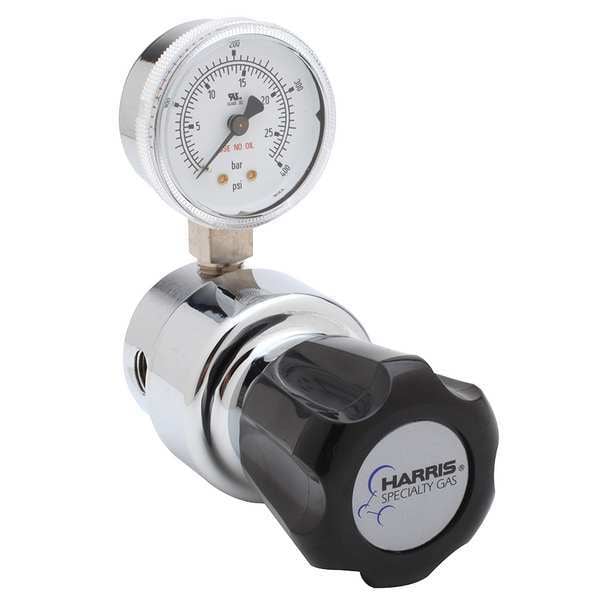

Harris High Purity Gas Regulator, High Purity Non-Corrosive Gas, Single Stage, 1/4 in Inlet, 1/4 in Outlet KH1034 - main

High Purity Gas Regulator, High Purity Non-Corrosive Gas, Single Stage, 1/4 in Inlet, 1/4 in Outlet

  • Mfr # KH1034

  • Zoro # G6714364

product price:  $309.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
High Purity Non-Corrosive Gas
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
KH1034
Zoro #
G6714364
UPC #
725636315266
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 in
Inlet Connection Size
1/4 in
Overall Length
5-1/4"
Body Diameter
2.125 in
Overall Depth
5.13 in
Dedupe with CGA Number and Inlet Connection Size
1/4 in NPT F

Details

Item
High Purity Gas Regulator
Compatible Gas Type
High Purity Non-Corrosive Gas
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Pipeline
Diaphragm Material
302 Stainless Steel
Gauges Delivery Pressure
30 psi
Application
General Laboratory Purpose
Includes
Rear Panel Mounting Threads
Delivery Pressure Range
0 to 15 psi
Standards
CGA E-4
Delivery
300 scfh (AIR)
Stages
Single Stage
Regulator Application
Laboratory
Features
External Relief Valve Standard, Blanketing, Pressure Testing, Purging
Type
In-Line
Seat Material
PTFE
Inlet Pressure (Maximum)
4,350 psig
Body Finish
Chrome Plated
Outlet Connection Type
NPT
Outlet Connection Gender
Female
Flow Coefficient
0.17
Inlet Connection Gender
Female
Inlet Connection Type
NPT
Regulator Series
HP 703
Control Type
Knob
Inlet Thread Direction
Right Hand
Seal Material
PTFE
CGA Number
CGA 000
Gas Purity Rating
99.999 %
Outlet Thread Direction
Right Hand
Filter Material
Nickel Plated Bronze
Helium Leak Integrity Rating
1.00 x 10^-8 cc/sec

Description

High Purity Gas Regulator, Mounting Type Pipeline, Number of Stages Single Stage, Control Type Knob, Maximum Inlet Pressure 4,350 psig, Inlet Connection Size 1/4 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Thread Direction Right Hand, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Outlet Thread Direction Right Hand, Gas Purity Rating 99.999 Percent
