  9. High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet

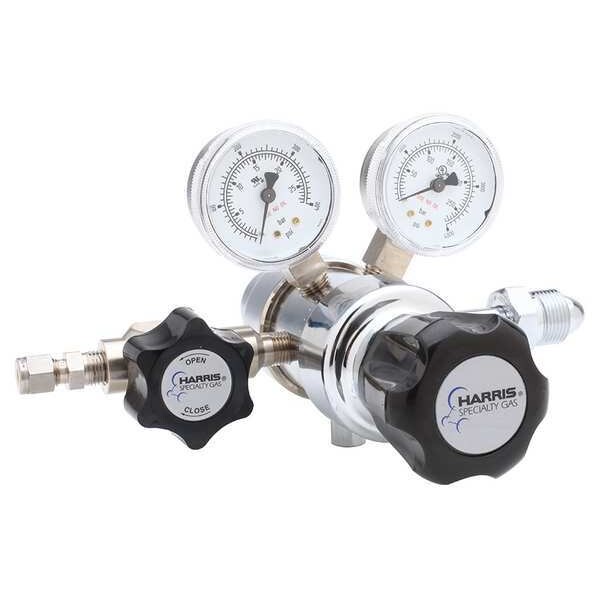

Harris High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet KH1056 - main

High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1056

  • Zoro # G7144767

product price: $669.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Hydrogen, Methane
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Two Stage
Outlet Pressure (Maximum)
50 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
KH1056
Zoro #
G7144767
UPC #
725636315488
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 in
Inlet Connection Size
0.825"-14
Overall Length
9-1/4"
Overall Depth
9.18 in
Body Diameter
2.125 in
Dedupe with CGA Number and Inlet Connection Size
CGA 350

Details

Item
High Purity Gas Regulator
Compatible Gas Type
Hydrogen, Methane
Body Material
Chrome Plated Brass
Number of Stages
Two Stage
Outlet Pressure (Maximum)
50 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Delivery Pressure Range
0 to 50 psi
Gauges Delivery Pressure
100 psi
Regulator Capacity
Heavy Duty
Application
General Laboratory Purpose
Includes
Diaphragm Type Shut Off Valve and Relief Valve
Standards
CGA E-4
Stages
Two Stage
Delivery
400 scfh (AIR)
Supply Pressure Gauge
4,000 psi
Diaphragm Material
302 Stainless Steel
Type
Two Stage
Features
Blanketing, External Relief Valve Standard, Pressure Testing, Purging
Control Type
Knob
Helium Leak Integrity Rating
1.00 x 10^-8 cc/sec
Inlet Connection Type
NGO
Filter Material
Nickel Plated Bronze
Inlet Connection Gender
Male
Outlet Connection Gender
Female
Outlet Thread Direction
Right Hand
Seal Material
PTFE
Seat Material
PTFE
Regulator Series
HP 702
Outlet Connection Type
Tube Fitting
Body Finish
Chrome Plated
CGA Number
CGA 350
Inlet Thread Direction
Left Hand
Gas Purity Rating
99.999 %
Inlet Pressure (Maximum)
4,350 psig
Flow Coefficient
0.15

Description

High Purity Gas Regulator, Mounting Type Cylinder, Number of Stages Two Stage, Compatible Gas Type Hydrogen, Methane, Control Type Knob, Maximum Inlet Pressure 4,350 psig, Inlet Connection Size 0.825 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Left Hand, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type Tube Fitting, Outlet Thread Direction Right Hand

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
