  9. High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet

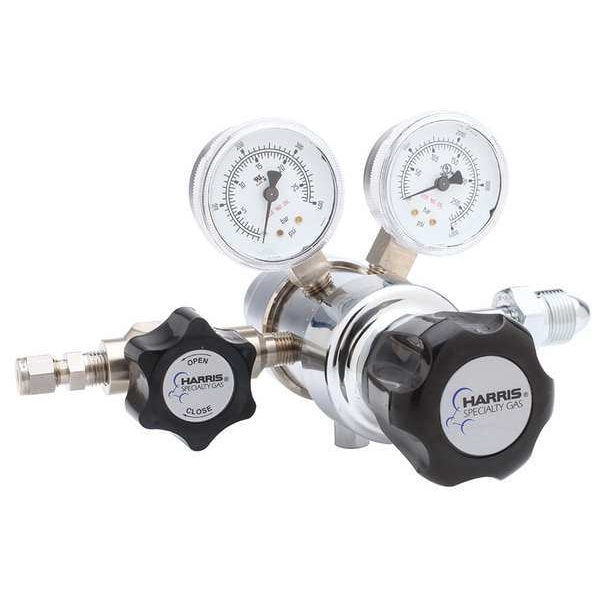

Harris High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet KH1057 - main

High Purity Gas Regulator, Hydrogen, Methane, Two Stage, 0.825"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1057

  • Zoro # G6648205

product price: $669.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Hydrogen, Methane
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Two Stage
Outlet Pressure (Maximum)
125 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KH1057
Zoro #
G6648205
UPC #
725636315495
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 in
Inlet Connection Size
0.825"-14
Overall Length
9-1/4"
Overall Depth
9.18 in
Body Diameter
2.125 in
Dedupe with CGA Number and Inlet Connection Size
CGA 350

Details

Item
High Purity Gas Regulator
Compatible Gas Type
Hydrogen, Methane
Body Material
Chrome Plated Brass
Number of Stages
Two Stage
Outlet Pressure (Maximum)
125 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Diaphragm Material
302 Stainless Steel
Application
General Laboratory Purpose
Supply Pressure Gauge
4,000 psi
Delivery Pressure Range
0 to 125 psi
Delivery
1100 scfh (AIR)
Gauges Delivery Pressure
200 psi
Regulator Capacity
Heavy Duty
Stages
Two Stage
Standards
CGA E-4
Includes
Diaphragm Type Shut Off Valve and Relief Valve
Type
Two Stage
Features
Blanketing, External Relief Valve Standard, Pressure Testing, Purging
Gas Purity Rating
99.999 %
Inlet Thread Direction
Left Hand
Filter Material
Nickel Plated Bronze
Control Type
Knob
Inlet Connection Gender
Male
CGA Number
CGA 350
Inlet Connection Type
NGO
Outlet Thread Direction
Right Hand
Body Finish
Chrome Plated
Helium Leak Integrity Rating
1.00 x 10^-8 cc/sec
Seat Material
PTFE
Regulator Series
HP 702
Flow Coefficient
0.15
Outlet Connection Type
Tube Fitting
Seal Material
PTFE
Outlet Connection Gender
Female
Inlet Pressure (Maximum)
4,350 psig

Description

High Purity Gas Regulator, Mounting Type Cylinder, Number of Stages Two Stage, Compatible Gas Type Hydrogen, Methane, Control Type Knob, Maximum Inlet Pressure 4,350 psig, Inlet Connection Size 0.825 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Left Hand, Outlet Pressure (Maximum) 125 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type Tube Fitting, Outlet Thread Direction Right Hand
