  9. Specialty Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

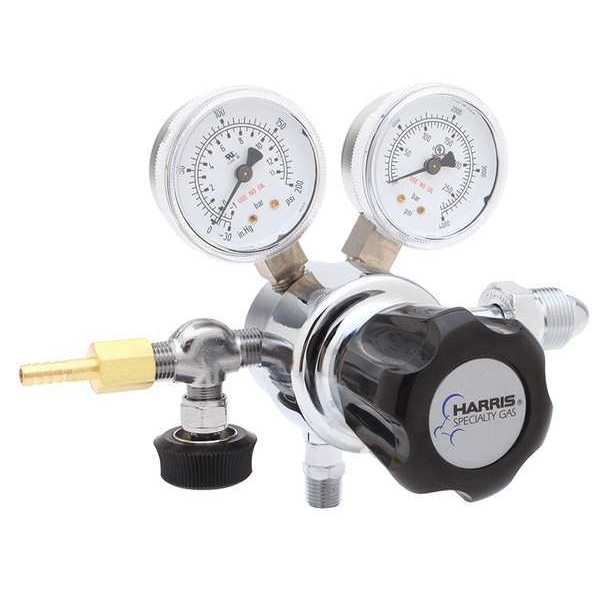

Harris Specialty Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet KH1007 - main

Specialty Gas Regulator, Argon, Helium, Nitrogen, Single Stage, 0.965"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1007

  • Zoro # G8529351

product price: $323.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon, Helium, Nitrogen
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KH1007
Zoro #
G8529351
UPC #
725636314993
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 in
Inlet Connection Size
0.965"-14
Overall Length
5-1/4"
Body Diameter
2.125 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
Specialty Gas Regulator
Compatible Gas Type
Argon, Helium, Nitrogen
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Delivery Pressure Range
0 to 15 psi
Delivery
600 scfh (AIR)
Stages
Single Stage
Diaphragm Material
Neoprene
Gauges Delivery Pressure
30 psi
Standards
CGA E-4
Supply Pressure Gauge
4,000 psi
Includes
Outlet Needle Valve and Relief Valve
Application
General Purpose Laboratory
Regulator Application
Laboratory
Type
Single Stage
Features
Gas Blanketing, One-Piece Encapsulated Seat Design, to Protect the Seat From Particulate Contamination, Pressure Testing, Purging, Self Reseating Internal Safety Valve, Tamper-Proof
Filter Material
Nickel Plated Bronze
Flow Coefficient
0.17
Regulator Series
GP 401
Seat Material
PTFE
Inlet Pressure (Maximum)
3,000 psig
Outlet Connection Type
NPT
Inlet Thread Direction
Right Hand
Seal Material
PTFE
Control Type
Knob
Maximum Gauge Outlet Pressure
4,000 psig
Outlet Connection Gender
Male
Bonnet Material
Chrome Plated Die Cast
Inlet Connection Gender
Male
Inlet Connection Type
NGO
CGA Number
CGA 580
Body Finish
Chrome Plated

Description

Specialty Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type Knob, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Body Material Brass, Body Finish Chrome Plated, Diaphragm Material Neoprene, CGA Number CGA 580

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
