  9. Specialty Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/4 in Outlet

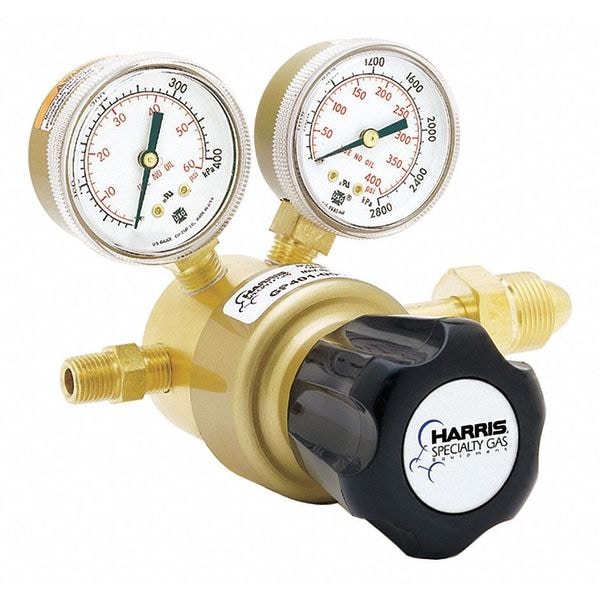

Harris Specialty Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/4 in Outlet KH1113 - main

Specialty Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/4 in Outlet

  • Mfr # KH1113

  • Zoro # G7063034

product price: $284.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Hydrogen, Methane
Outlet Connection Size
1/4 in
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KH1113
Zoro #
G7063034
UPC #
725636316102
Country of Origin
United States

Dimensions

Outlet Connection Size
1/4 in
Gauge Diameter
2 in
Inlet Connection Size
0.825"-14
Overall Length
5-1/2"
Overall Depth
5.13 in
Body Diameter
2.125 in
Overall Width
5.6 in
Overall Height
4.39 in
Dedupe with CGA Number and Inlet Connection Size
CGA 350

Details

Item
Specialty Gas Regulator
Compatible Gas Type
Hydrogen, Methane
Body Material
Chrome Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Includes
Harris Model GP401 Single Stage Regulator
Gauges Delivery Pressure
150 psi
Regulator Application
Laboratory
Stages
Single Stage
Standards
CGA E-4
Application
General Purpose Laboratory
Delivery Pressure Range
0 to 125 psi
Diaphragm Material
Neoprene
Supply Pressure Gauge
4,000 psi
Delivery
0 to 125 psi
Type
Single Stage
Features
Gas Shielding, One-Piece Encapsulated Seat Design, to Protect the Seat From Particulate Contamination, Pressure Testing, Purging, Self Reseating Internal Safety Valve, Tamper-Proof
Inlet Thread Direction
Left Hand
Outlet Connection Type
NPT
Flow Coefficient
0.17
Inlet Pressure (Maximum)
3,000 psig
Outlet Connection Gender
Male
Regulator Series
GP 401
Inlet Connection Type
NGO
Inlet Connection Gender
Male
CGA Number
CGA 350
Maximum Gauge Outlet Pressure
4,000 psig
Body Finish
Chrome Plated
Control Type
Knob
Seal Material
PTFE

Description

Specialty Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Hydrogen, Methane, Control Type Knob, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Body Material Brass, Body Finish Chrome Plated, Diaphragm Material Neoprene, CGA Number CGA 350
