  9. Condensate Pump, 100/230V AC, 20 ft Head

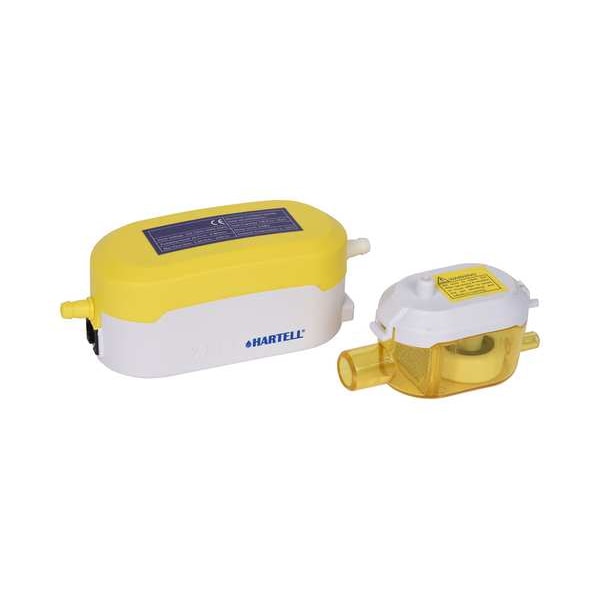

Hartell Condensate Pump, 100/230V AC, 20 ft Head HAR-15 - main

Condensate Pump, 100/230V AC, 20 ft Head

  • Mfr # HAR-15

  • Zoro # G003550370

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Tank Material
Plastic
Application
Condensate Removal
Float Material
Plastic
Pump Type
Mini-Split
Cord Length
5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HAR-15
Zoro #
G003550370
UPC #
856472008507
Country of Origin
China

Dimensions

Cord Length
5 ft
Compatible Intake Pipe Size
1/4 in
Overall Length
6.88 in
Compatible Discharge Pipe Size
1/4 in
Overall Height
2.52 in
Overall Width
10.43 in
Manufacturer Warranty Length
1 yr
For Discharge Pipe Diameter
1/4 in
For Inlet Pipe Diameter
1/4 in

Details

Item
Condensate Removal Pump
Tank Material
Plastic
Application
Condensate Removal
Float Material
Plastic
Pump Type
Mini-Split
Amps
0.014 A
Standards
CE uk/ca
For Use With Potable Systems
No
Frequency
50/60 Hz
Maximum Flow Rate @ 20 Feet of Head
0 gph
Pump Housing Material
Plastic
Maximum Flow Rate @ 10 Feet of Head
0.08 gpm
Series Family
HA
Pump Activation Type
Float Switch
Discharge Connection Style
Barbed
Maximum Flow Rate @ 15 Feet of Head
3.69 gph
Maximum Media Temperature
122 Degrees F
Phase
Single
Maximum Feet of Head
20 ft
Series
HAR
Wetted Material
Plastic
Minimum Media Temperature
40 Degrees F
Nameplate Voltage
100/230V AC
Maximum Ambient Temperature
122 Degrees F
Plenum Rated
No
Maximum Operating Pressure
11.37 psi
Maximum Flow Rate @ 5 Feet of Head
0.09 gpm
Number of Intakes
1
Minimum Ambient Temperature
40 Degrees F
Electrical Connection Type
Hardwired
Maximum Flow Rate @ 1 Feet of Head
6.33 gph
Intake Connection Style
Barbed
Media Temperature - Maximum
122 Degrees F
Product Type
Mini-Split Condensate Removal Pump
Discharge Standard
Barbed
For Media Type
Clear Water
Pump Casing Material
Plastic
Horsepower
1/16 hp
Includes Tubing
Tubing Included
Connectivity
Auxiliary Contacts
Media Temperature - Minimum
40 Degrees F
Number of Inlets
1
Ambient Temperature - Maximum
122 Degrees F
Priming
Manual
Includes Safety Switch
Safety Switch Included
Inlet Standard
Barbed
For HVAC System Duct
Ducted
Feet of Head - Maximum
20 ft
Tank Opacity
Solid
Turn On Level
1.5 in
Shut Off Level
26 ft
Full Load Current
0.014 A
Ambient Temperature - Minimum
40 Degrees F
Installation
Floor Standing

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Intake Connection Style Barbed, Maximum Feet of Head 20 ft, Maximum Flow Rate @ 10 Feet of Head 0.08 gpm, Maximum Flow Rate @ 15 Feet of Head 3.69 gph, Maximum Flow Rate @ 1 Foot of Head 6.33 gph, Maximum Flow Rate @ 20 Feet of Head 0 gph, Maximum Media Temperature 122 Degrees F, Nameplate Voltage 100/230V AC, Plenum Rated No, Pump Type Mini-Split, Series HAR, Series Family HA, Shut Off Level 26 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
