Shop HARTELL

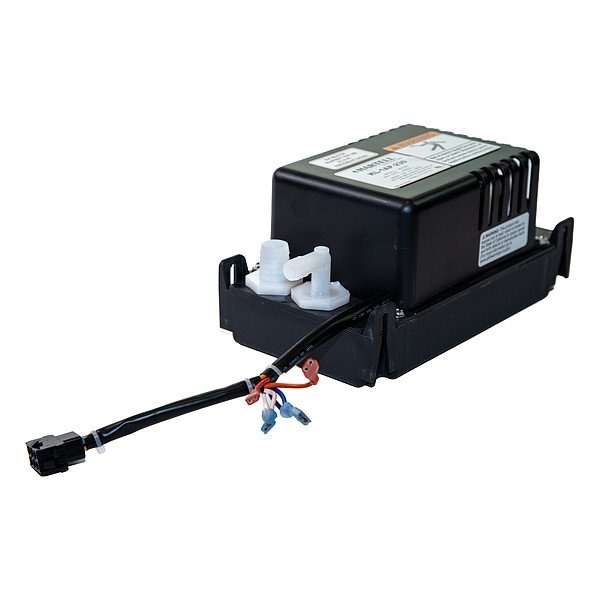

Condensate Removal Pump, 5.2 psi, Single

  • Mfr # KL-1AP-230 / 491-0523A

  • Zoro # G916261769

product price:  $652.99
/ea
Free Shipping & Returns

Key Features

Inlet Standard
Open
Manufacturer Warranty Length
1 yr
Installation
Floor Standing
Tank Material
Polypropylene
Media Temperature - Minimum
50 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KL-1AP-230 / 491-0523A
Zoro #
G916261769
UPC #
856472008859
Country of Origin
United States

Dimensions

Manufacturer Warranty Length
1 yr
Cord Length
6 ft
For Inlet Pipe Diameter
3/4 in
Overall Height
4.84 in
Overall Length
12 in
For Discharge Pipe Diameter
3/8 in
Overall Width
4.84 in
Wire Rope Length
12 in

Details

Item
Condensate Removal Pump
Inlet Standard
Open
Installation
Floor Standing
Tank Material
Polypropylene
Media Temperature - Minimum
50 Degrees F
Media Temperature - Maximum
212 Degrees F
Frequency
50/60 Hz
Maximum Flow Rate @ 5 Feet of Head
1.6 gpm
Nameplate Voltage
230V AC
Electrical Connection Type
Hardwired
Standards
UL 2043
Connectivity
Auxiliary Contacts
Discharge Standard
Barbed
Pump Activation Type
Float Switch
Number of Inlets
1
Product Type
Condensate Removal Pump
Pump Technology
Centrifugal
For Media Type
Clear Water
Pump Casing Material
Polypropylene
Application
Condensate Removal
Power Source - TS Only
Corded Electric
Tank Capacity
1 qt
Horsepower
1/10 hp
Phase
Single
Ambient Temperature - Minimum
50 Degrees F
Feet of Head - Maximum
14 ft
Includes Safety Switch
Safety Switch Included
Includes Tubing
No Tubing Included
Shut Off Level
0.1 in
Tank Opacity
Solid
Float Material
Plastic
Turn On Level
0.4 in
Series
KL-1XX-XX
Ambient Temperature - Maximum
212 Degrees F
Operating Pressure - Maximum
5.2 psi
Maximum Flow Rate @ 1 Feet of Head
1.5 gpm
Full Load Current
0.55 A
Maximum Flow Rate @ 10 Feet of Head
1.2 gpm
Priming
Self-Priming
Power Source
Corded Electric

Description

Condensate Removal Pump

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
