  9. D Sub Fe Crimp 09 Pole, PK 100

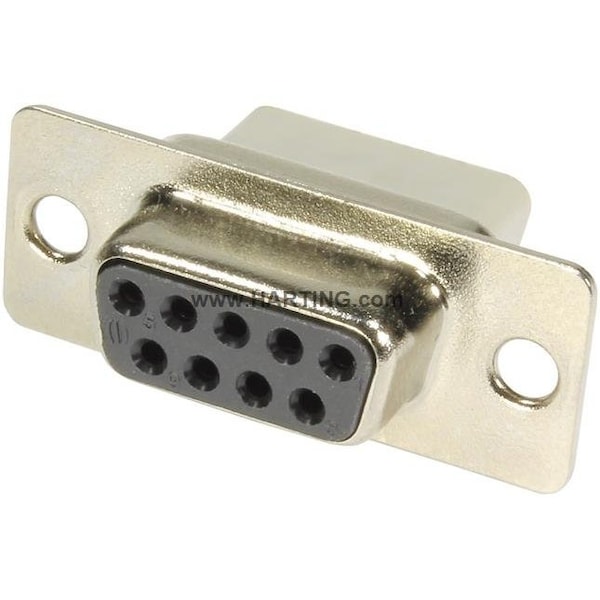

Harting D Sub Fe Crimp 09 Pole, PK 100 09670094701 - main

D Sub Fe Crimp 09 Pole, PK 100

  • Mfr # 09670094701

  • Zoro # G7737332

product price: $263.99
/pk 100, $2.64/ea
Free Shipping & Returns

Key Features

Color
Black
Temp. Range
-55 to 125°C
Termination Type
Crimp
Standards
DIN 41652; IEC 60807-3; CECC 75301-802; UL 1977 ECBT2.E102079
Series
D-Sub
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09670094701
Zoro #
G7737332
UPC #
-
Country of Origin
China

Dimensions

Conductor Size - Data Cable
0.09 to 0.82 sq mm
Size
D-Sub 1

Details

Item
Connector
Color
Black
Temp. Range
-55 to 125°C
Termination Type
Crimp
Standards
DIN 41652; IEC 60807-3; CECC 75301-802; UL 1977 ECBT2.E102079
Series
D-Sub
Material
Glass Fiber Filled Thermoplastic Resin; Steel (Shell)
Number of contacts
9
Material (insert)
Thermoplastic resin, glass-fibre filled (PBTP) || Plated steel
Specifications
DIN 41652
Locking type
Fixing flange with feed through hole Ø 3.1 mm
Creepage distance
≥1 mm
UL / CSA
UL 1977 ECBT2.E102079
Limiting temperature
-55 ... +125 °C
Material flammability class acc. to UL 94
V-0
Material (contacts)
Copper alloy
Test voltage U r.m.s.
1 kV
Clearance distance
≥1 mm
Element
Connector
Insertion force
≤30 N
Termination Method
Crimp termination
Identification
Standard
Gender
Female
Insulation resistance
>10

Description

Connector, Crimp termination, Female, Size: D-Sub 1, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel, Contacts: 9, Copper alloy
