  9. Han 24 E-F-C 25-48

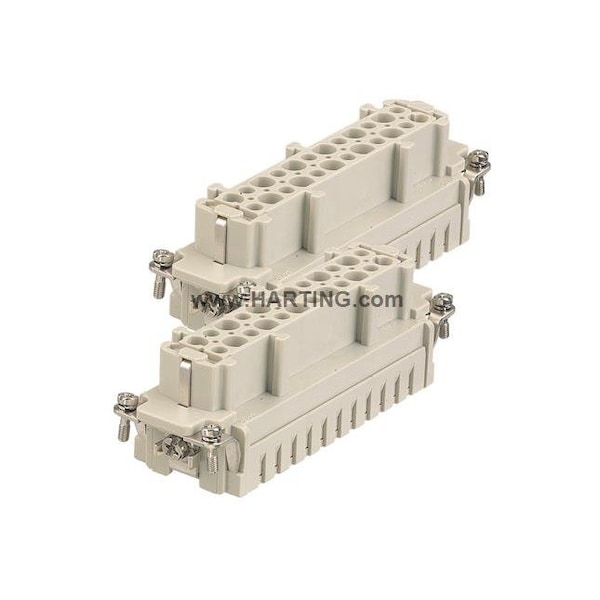

Harting Han 24 E-F-C 25-48 09330242712 - main

Han 24 E-F-C 25-48

  • Mfr # 09330242712

  • Zoro # G2047321

product price: $52.29
/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09330242712
Zoro #
G2047321
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
26 AWG
Max. Single Wire Size
12 AWG
For Minimum Wire Size - Solid
26 AWG
Maximum Single Wire Size
12 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Approximate Amperage Rating - Grounding Braid
16 A
Connector Type
Female
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
Max. Temp.
125°C
Series
Han E
Material
Polycarbonate
Max. Voltage
500 V
Green Environmental Attribute
Pollution Degree 3
Terminal Type
Crimp
Sub-Category
Inserts
Number of Contacts
48
Current Rating
16 A
Flammability Rating
UL 94 V-0

Description

Inserts, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 48 B, Contacts: 48, Conductor cross-section: 0.14 ... 4 mm2
