Shop HARTING

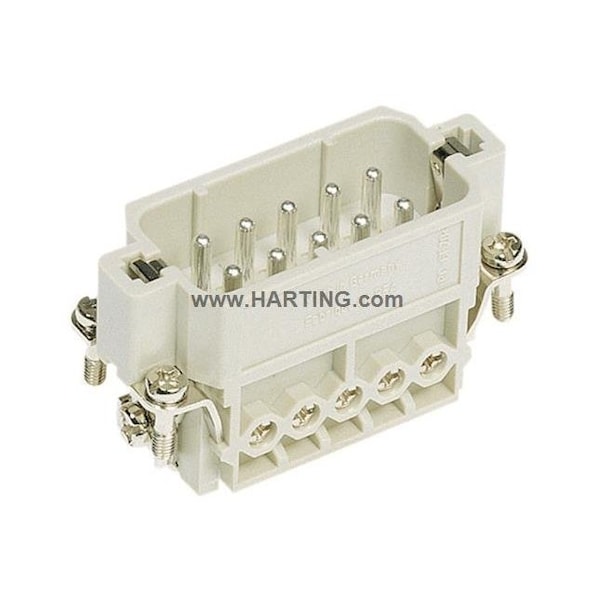

Han A 10 Pos. M Insert Screw

  • Mfr # 09200102612

  • Zoro # G2774472

product price:
$
33.99
/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
09200102612
Zoro #
G2774472
UPC #
-
Country of Origin
Germany
Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Copper Alloy
Green Environmental Attribute
Pollution Degree 3
Terminal Type
Screw
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
Approximate Amperage Rating - Grounding Braid
16 A
Series
Han A
Material
Polycarbonate
Sub-Category
Inserts
Connector Type
Male
Finish
Silver Plated
Max. Temp.
125°C
Max. Voltage
250 V
Number of Contacts
10
Current Rating
16 A
Contact Finish
Silver Plated
Flammability Rating
UL 94 V-0

Description

Inserts, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 10 A, Contacts: 10, Conductor cross-section: 0.75 ... 2.5 mm2, Copper alloy, Silver plated
