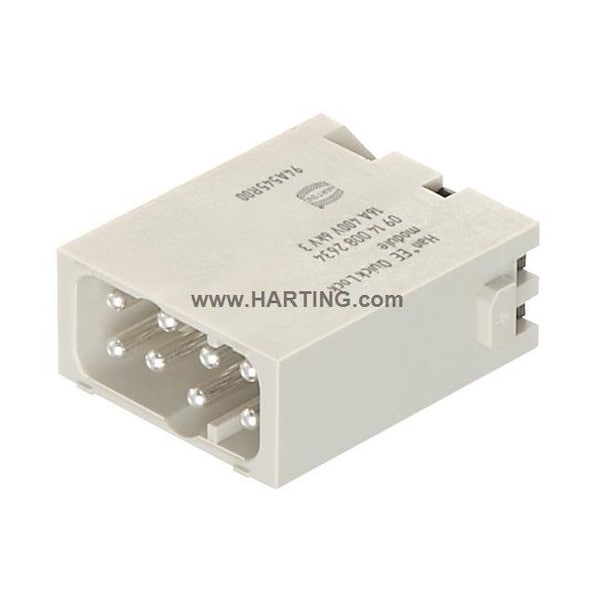

Han Ee Quick- Lock Module Male 1, 5Mm, PK 2

  • Mfr # 09140082634
  • Zoro # G2046192
product price:
$
118.99
/pk of 2, $59.50/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
400 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
09140082634
Zoro #
G2046192
UPC #
-
Country of Origin
Romania
Item
Connector Module
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
400 V
Current
16 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Green Environmental Attribute
Pollution Degree 3
Approximate Amperage Rating - Grounding Braid
16 A
Finish
Silver Plated
Series
Han-Modular
Description/Special Features
Black Slide
Terminal Type
Han-Quick Lock
Material
Polycarbonate
Connector Type
Male
Max. Voltage
400 V
Standards
EN 45545-2 (2020-08); DNV GL
Max. Temp.
125°C
Sub-Category
Modules
Connection Material
Copper Alloy
Current Rating
16 A
Number of Contacts
8
Contact Finish
Silver Plated
Flammability Rating
UL 94 V-0

Dimensions

Min. Single Wire Size
0.25 mm2
Max. Single Wire Size
1.5 mm2
Minimum Single Wire Size
24 AWG
Maximum Single Wire Size
16 AWG

Description

Han® EE module, Han-Quick Lock® termination, Male, Contacts: 8, Conductor cross-section: 0.25 ... 1.5 mm2, Rated current: ‌16 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
