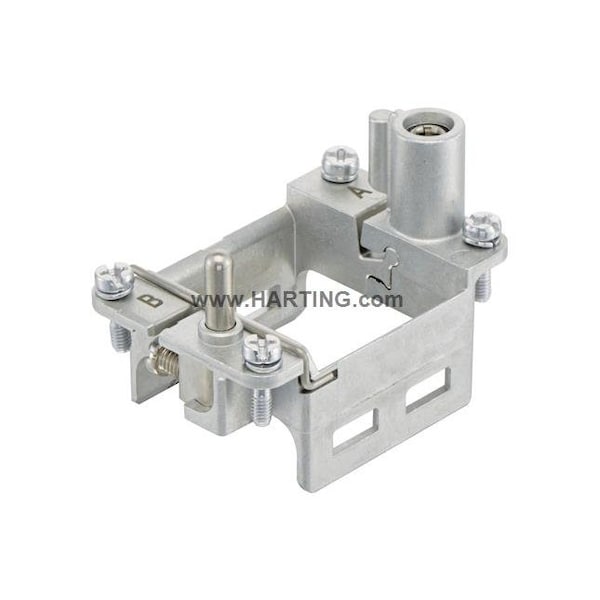

Han Hinged Frame Plus For 2 Modules A-B
Mfr # 09140060361
Zoro # G2774901
product price:Â
$
39.35
/ea
Key Features
Type
Hinged Frame Plus
Maximum Operating Temperature
125 Degrees C
Material
Die Cast Zinc; Stainless Steel
Series
Han-Modular
Standards
DNV GL; UL 1977 ECBT2.E235076
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 09140060361
- Zoro #
- G2774901
- UPC #
- -
- Country of Origin
- Germany
- Item
- Module Carrier Frame
- Type
- Hinged Frame Plus
- Maximum Operating Temperature
- 125 Degrees C
- Material
- Die Cast Zinc; Stainless Steel
- Series
- Han-Modular
- Standards
- DNV GL; UL 1977 ECBT2.E235076
- Max. Temp.
- 125°C
- Features
- Conductor Cross-Section PE (Power Side) 4 to 10 sq mm; Conductor Cross-Section PE (Signal Side) 1 to 2.5 sq mm
Description
Hinged frame plus, for 2 modules, A ... B, Size: 6 B
