Han Hsc 12 Pos. Male Insert
Mfr # 09320123001
Zoro # G2048484
product price: $125.99
/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
690 V
Current
40 A
Maximum Operating Temperature
125 Degrees C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
09320123001
Zoro #
G2048484
UPC #
-
Country of Origin
Romania
Dimensions
Min. Single Wire Size
1.5 sq mm; 0.14 sq mm (Signal)
Diameter
5 mm
Max. Single Wire Size
6 sq mm; 2.5 sq mm (Signal)
Minimum Single Wire Size
16 AWG
Maximum Single Wire Size
10 AWG
Description

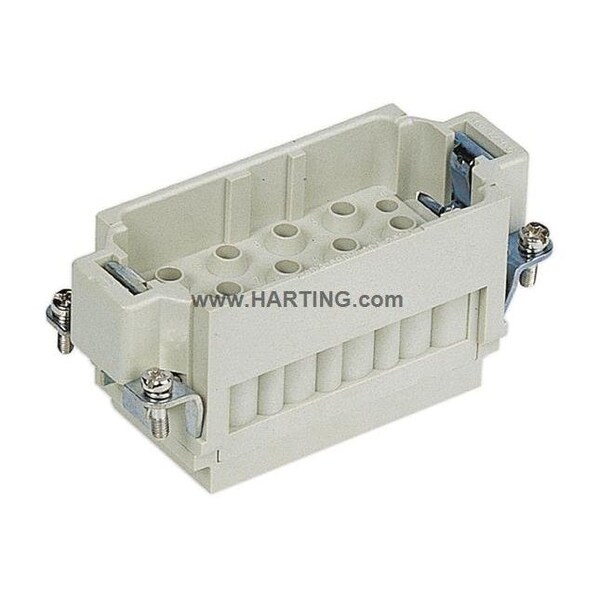

Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 16 B, Contacts: 12, + 2 additional signal contacts, Conductor cross-section: 1.5 ... 6 mm2, 0.14 ... 2.5 mm2 Signal
