  9. Han Modular 12 Dd Module, PK 2

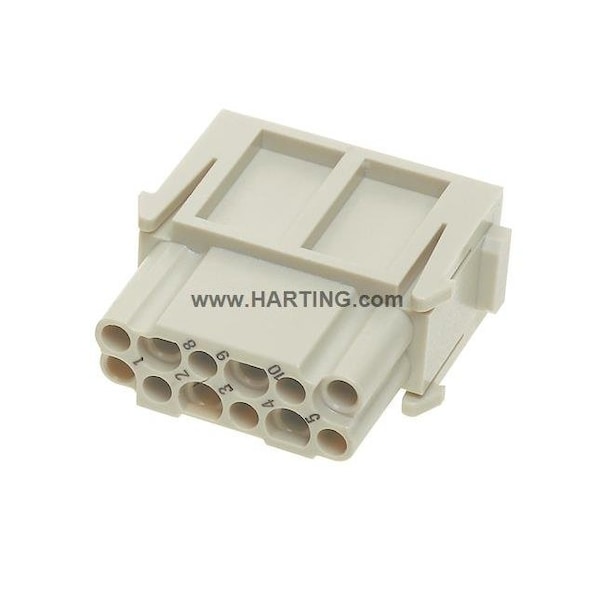

Harting Han Modular 12 Dd Module, PK 2 09140123101 - main

Han Modular 12 Dd Module, PK 2

  • Mfr # 09140123101

  • Zoro # G2048940

product price: $15.45
/pk 2, $7.73/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09140123101
Zoro #
G2048940
UPC #
-
Country of Origin
Germany

Dimensions

Max. Single Wire Size
2.5 mm2
Min. Single Wire Size
0.14 mm2
Maximum Single Wire Size
14 AWG
For Minimum Wire Size - Solid
26 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Connector Module
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
Sub-Category
Modules
Approximate Amperage Rating - Grounding Braid
10 A
Green Environmental Attribute
Pollution Degree 3
Max. Voltage
250 V
Max. Temp.
125°C
Connector Type
Female
Terminal Type
Crimp
Series
Han-Modular
Material
Polycarbonate
Current Rating
10 A
Number of Contacts
12
Flammability Rating
UL 94 V-0
Maximum Conductors
12

Description

Han DD® module, Crimp termination, Female, Contacts: 12, Conductor cross-section: 0.14 ... 2.5 mm2, Rated current: ‌10 A, Polycarbonate (PC), RAL 7032 (pebble grey)
